PIN INSERTING MACHINE

According your product specifiction, the insert pin machine can inserter for pin, like circle pin, square pin and flat pin. It is okay for inserter straight pin or L pin

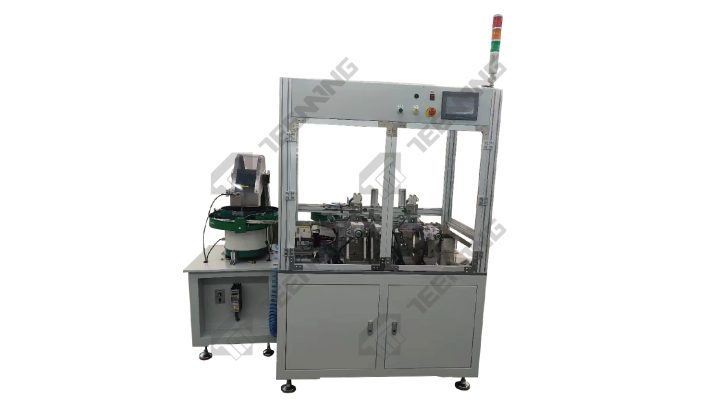

IP-08 SEMI-AUTO PIN INSERTING MACHINE

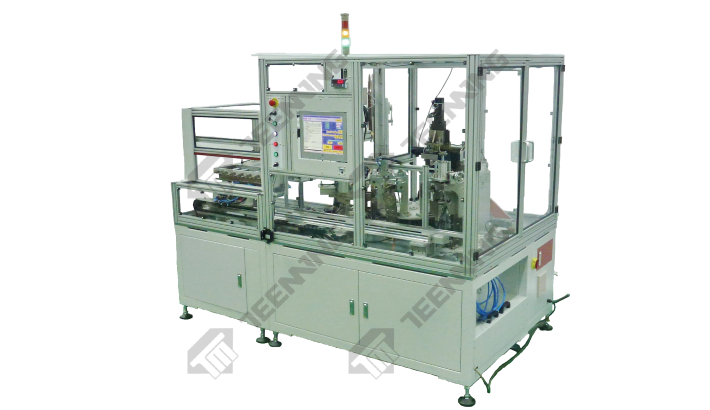

AIP-02 PINS END FORMING AND INSERTING MACHINE

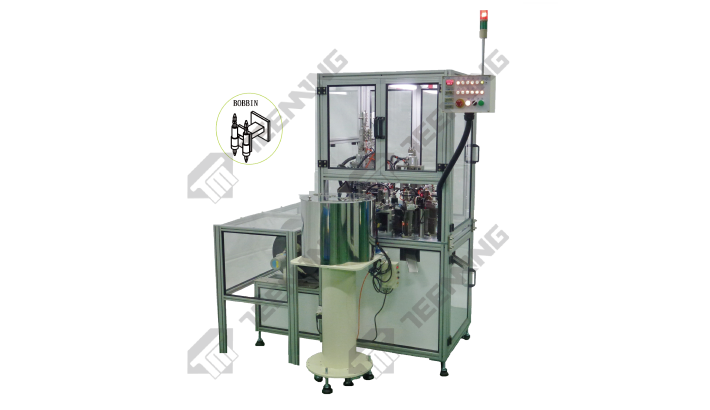

AIP-28 AUTO PIN INSERTING MACHINE

218/5000
(1) The body is inclined to 30 degrees, easy to feed and withdraw materials, and the vibration barrel for feeding materials is optional.

(2) large versatility, only need to replace special components, can change the type in a short time.

(3) Round PIN, corner PIN, flat PIN, are applicable.

(4) Up to 20 pins can be inserted at the same time.

(5) PIN length, groove position, easy to adjust.

(6) When the wire is used up or broken, it can automatically detect the stop.

(7) Outside the linear PIN press, it can also be bent PIN 0~90 degrees.

(8) Can be used with the production line according to the user's requirements and design

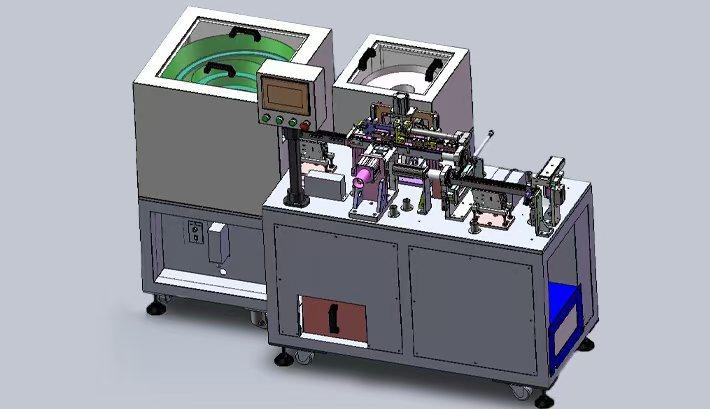

AIP-86 AUTO PIN INSERTER

AIT-03 AUTO TERMINAL INSERTER

Process - Pin Inserting Machine

1. Load bobbin to the pin inserting machine

2. Make trace on pin

3. Insert pin

4. Bending pin 90˚

5. Unload by hand or to linear feeder

Q1. How to choose the right inserter for pin machine model?

A1. You can provide us with the bobbin drawing, and we will offer the best solution for you.

Q2. What are the differences between each pin inserting machine?

A2. The differences depend on the bobbin's dimensions and the number of pins to be inserted.

Q3. How often should the pin-inserting machine be maintained?

A3. It is recommended to perform small maintenance every three months and major maintenance every six months.
