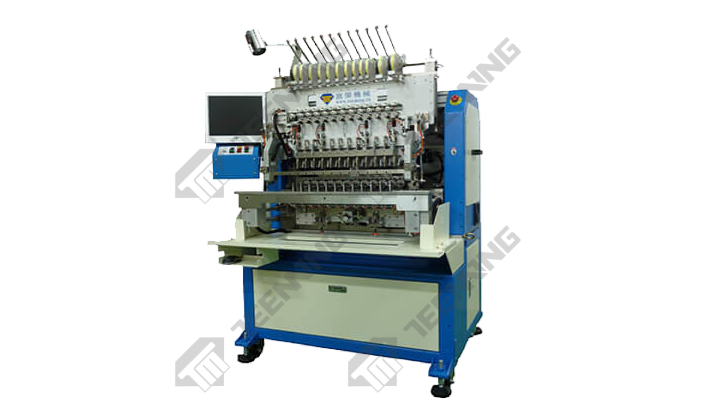

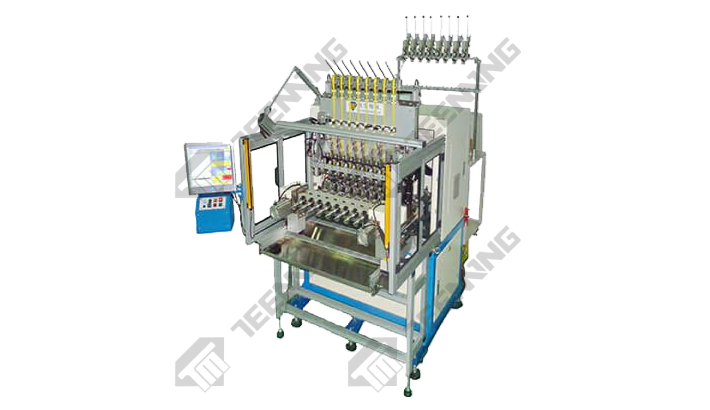

AUTO WINDING & TAPING MACHINE
Process - Auto Winding & Taping Machine
1. Load the bobbin onto the spindle of the winding & taping machine. Secure the bobbin in place to prevent any movement during the winding process. The tooling serves as the foundation for the wire coils.
2.Start the winding & taping machine to initiate the winding process. The machine will rotate the bobbin and guide the wire onto it according to the specified parameters.
3.End winding, once the desired number of turns or layers is reached, secure the ending end of the wire to the bobbin.
4.Taping, initiate the taping machine to start the application of tape. The machine is programmed to move the coil.The tape is often applied in an overlapping fashion, with each layer covering the previous one. This layering provides additional insulation and protection.
5.Carefully remove the fully wound bobbin from the spindle. Take care to avoid any damage to the wound coils during the unloading process.
