Toroidal Winding Machine
The Automatic Toroidal Winding Machine is a state-of-the-art device designed for the efficient and precise production of toroidal inductors, transformers, and other inductive components. This machine is equipped with advanced features to enhance productivity and ensure high-quality winding results.
✅ Key Features of Teeming’s Automatic Toroidal Winding Machine:
🔸Programmable Logic Controller (PLC): The machine utilizes a PLC for precise control over the winding process, allowing for customization and optimization of winding parameters.
🔸Human-Machine Interface (HMI): An intuitive HMI enables operators to easily set up and monitor the winding process, facilitating user-friendly operation and quick adjustments.
🔸Vibration Feeding System: The integrated vibration feeding mechanism ensures consistent and accurate wire feeding, reducing the risk of wire tangling and enhancing winding efficiency.

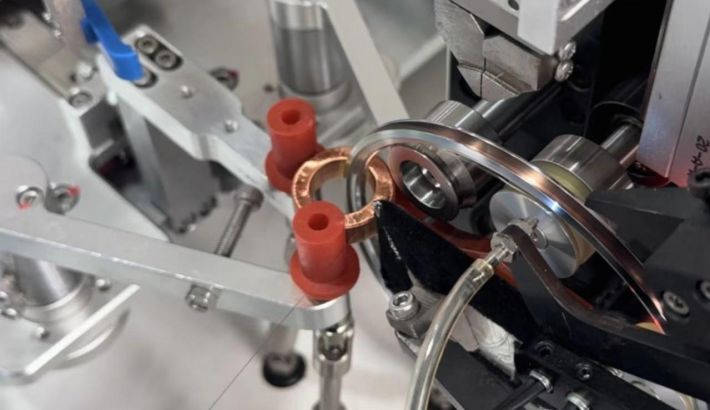

🔸Cylinder Gripper: Equipped with a cylinder gripper, the machine securely holds the core during the winding process, ensuring stability and precision.
By integrating these advanced features, Teeming's Automatic Toroidal Winding Machine offers a comprehensive solution for manufacturers seeking to enhance production efficiency, reduce labor costs, and maintain consistent product quality in the production of toroidal inductors, transformers, and inductors.
Q1: What is a toroidal winding machine and how does it work?
A1: A toroidal winding machine is a specialized device used for winding toroidal coils. It operates by using a motor to drive the winding mechanism, which rotates and moves the wire along a preset path to form the coil. These machines are typically equipped with precise control systems to manage the winding speed, tension, and number of turns, ensuring the quality and consistency of the coils.
Q2: Can a toroidal winding machine handle different wire gauges?
A2: Yes, a toroidal winding machine can handle different wire gauges. Modern toroidal winding machines are usually multifunctional and can adjust winding parameters to accommodate wires of various diameters. For example, by adjusting the tension control system and guiding system, the machine can ensure consistent tension and alignment for wires of different gauges during the winding process.
Q3: How to choose the right toroidal winding machine based on production needs?
A3: Choosing the right toroidal winding machine depends on several factors:
Q1: What is a toroidal winding machine and how does it work?
A1: A toroidal winding machine is a specialized device used for winding toroidal coils. It operates by using a motor to drive the winding mechanism, which rotates and moves the wire along a preset path to form the coil. These machines are typically equipped with precise control systems to manage the winding speed, tension, and number of turns, ensuring the quality and consistency of the coils.
Q2: Can a toroidal winding machine handle different wire gauges?
A2: Yes, a toroidal winding machine can handle different wire gauges. Modern toroidal winding machines are usually multifunctional and can adjust winding parameters to accommodate wires of various diameters. For example, by adjusting the tension control system and guiding system, the machine can ensure consistent tension and alignment for wires of different gauges during the winding process.
Q3: How to choose the right toroidal winding machine based on production needs?
A3: Choosing the right toroidal winding machine depends on several factors:
- Type and size of the coil: Select a winding machine based on the type and size of the coil. For instance, small coils may require precise winding control, while larger coils need more power and stability.
- Level of automation: High automation levels can reduce human error and increase production efficiency. Machines with high automation can provide real-time monitoring and feedback control of the winding quality.
- Tension control: Accurate tension control is crucial for ensuring winding quality. Choose a machine with an advanced tension control system to maintain stable tension during the winding process.
- Durability of the equipment: Selecting durable equipment can reduce maintenance costs and extend the machine's lifespan.
AUTO TOROIDAL WINDING MACHINE
1 spindle
