product
FEATURES
- Customize jig and change it easy.
- Set model program quickly.
- Easily control.
PROCESS
Load by hand
↓
Winding
↓
Unload by hand
↓
Winding
↓
Unload by hand
SPECIFICATION
| Power source | AC 110V/220V 50/60HZ |
| Wire size | 0.02-0.2mm |
| Motor speed | 6000 RPM |
| Machine dimension | 660(L)x1020(W)x1100(H)mm |
| Machine weight | 75KGS |

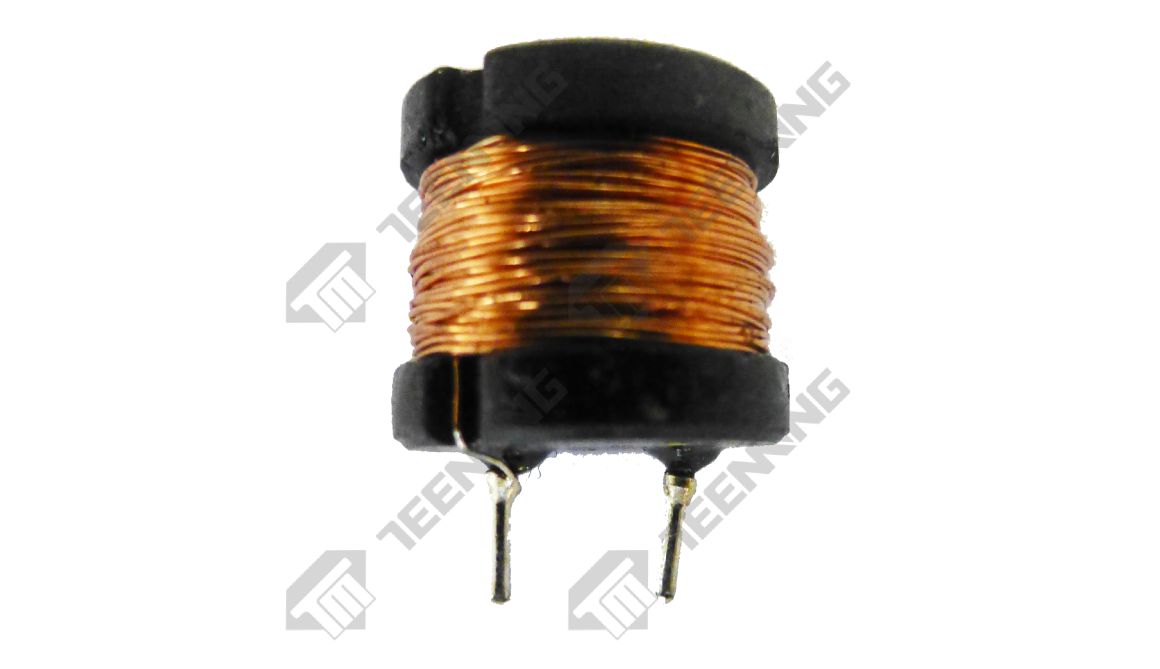

| Suitable coil | Transformer、coils |
| Option | 1.Bobbin support 2.Tensioner |
