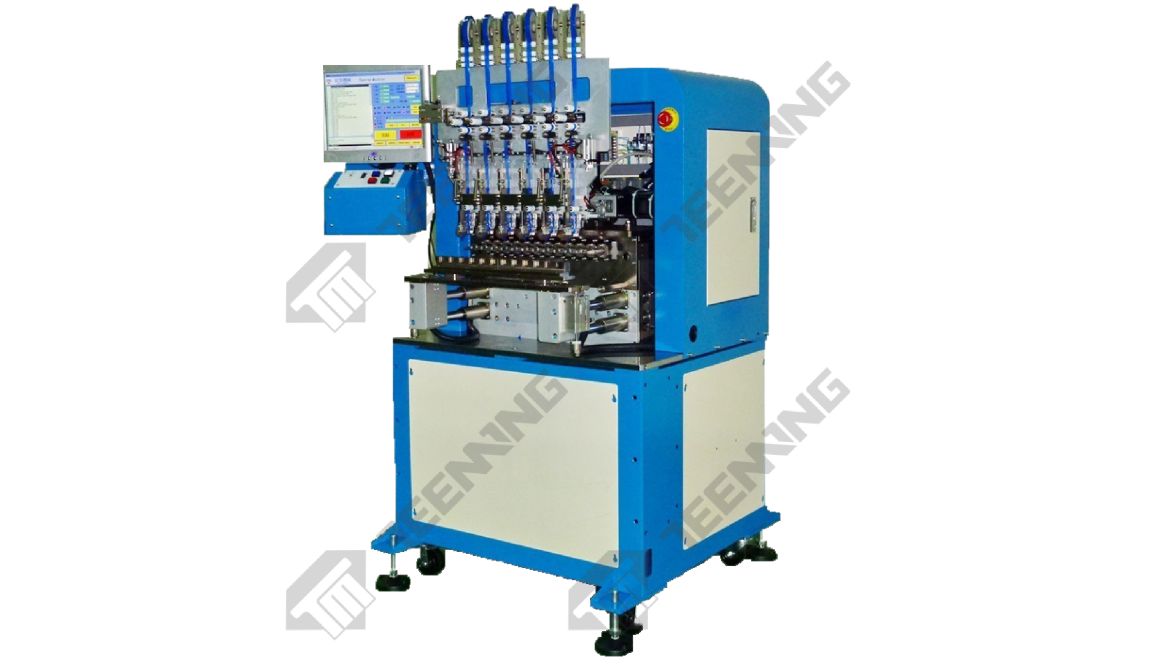

TM-3612-06-TP_6 SPINDLE AUTO TAPING

A taping machine is a specialized device used to apply tape around various products or components. The primary purpose of a taping machine is to provide protection, insulation, or reinforcement to the item being taped. Taping machines are widely used in industries such as electronics, automotive, aerospace.

The taping machine is equipped with a mechanism to hold and dispense the tape. The tape can be supplied from a roll or a spool, and it is precisely guided to ensure proper application.

Also equipped with a cutting mechanism to trim the tape at the end of each wrapping cycle, creating clean and precise edges.

Taping Machine applications on electrical and electronics industry, taping machines are used to apply insulating tape or film to electrical wires, cables, and electronic components, providing electrical insulation and protection against moisture and other environmental factors.

Taping machines offer an efficient and consistent way to apply tape to a wide range of products and components. They help improve production speed, reduce costs, and ensure high-quality taping results for various industrial applications.
FEATURES
  1. Customize jig and change it easy
  2. Can set cut position
  3. Control by servo motor
  4. Automatic loading and unloading
  5. Automatic taping
  6. Automatic cut tape
  7. Operated as single machine or connected with production line
  8. Simple construction, easily control and convenient maintenance
PROCESS

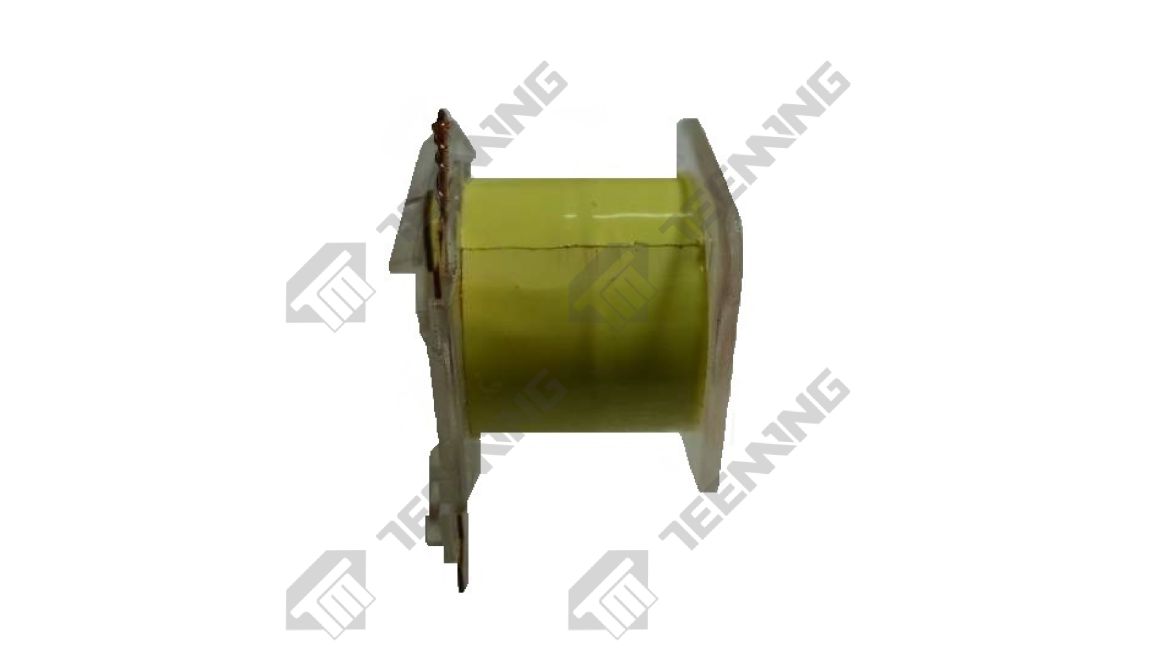

Load wound coil on the fixture by hand
  ↓
Set tape turns and cut position
  ↓
Roller can help taper stick on coil tightly
  ↓
Automatic Unloading

SPECIFICATION
Number of spindles 12/6
Control system AC servo motor
Data storage 1GB CF Card
Tape I.D. Min:76mm Max:80mm
Tape O.D. Min:85mm Max:130mm
Controller Programmable automaion controller
Spindle pitch 36 mm
Max. bobbin diagonal 30 mm (Bobbin width under 18mm)
Tape width Min:4mm Max:25mm
Winding speed 3000 RPM
Winding direction CW/CCW
Spindle stop accuracy +/-0.225˚
Maximum travel distance X 60 mm
Maximum travel distance Y 60 mm
Maximum travel distance Z 65 mm
Power source AC 220V 3 phase, 50/60 HZ
Consumed power 2KW
Air pressure supply required 5-6 KGS/c㎡(=0.5-0.6MPA)
Machine dimension (exclude screen) 1300(L)x950(W)x1700(H)mm
Machine weight 350KGS
Option Automatic Loading & Unloading(Bobbin width below 16mm)
Due to machine improvement, machine specifications will be change without further notices.
