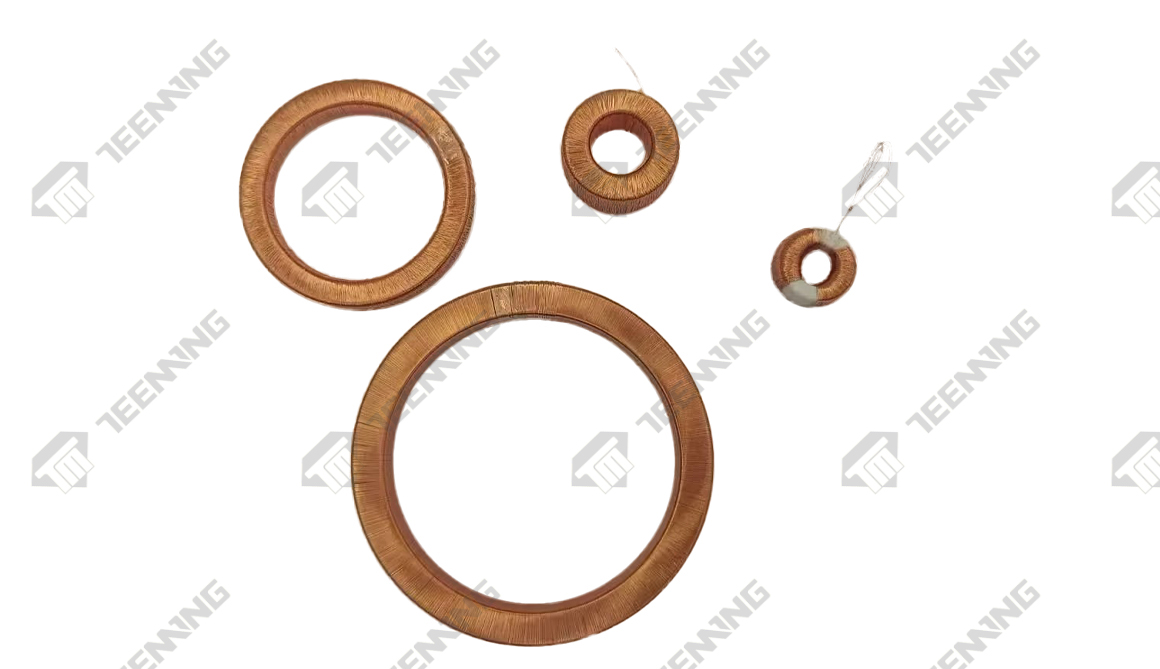

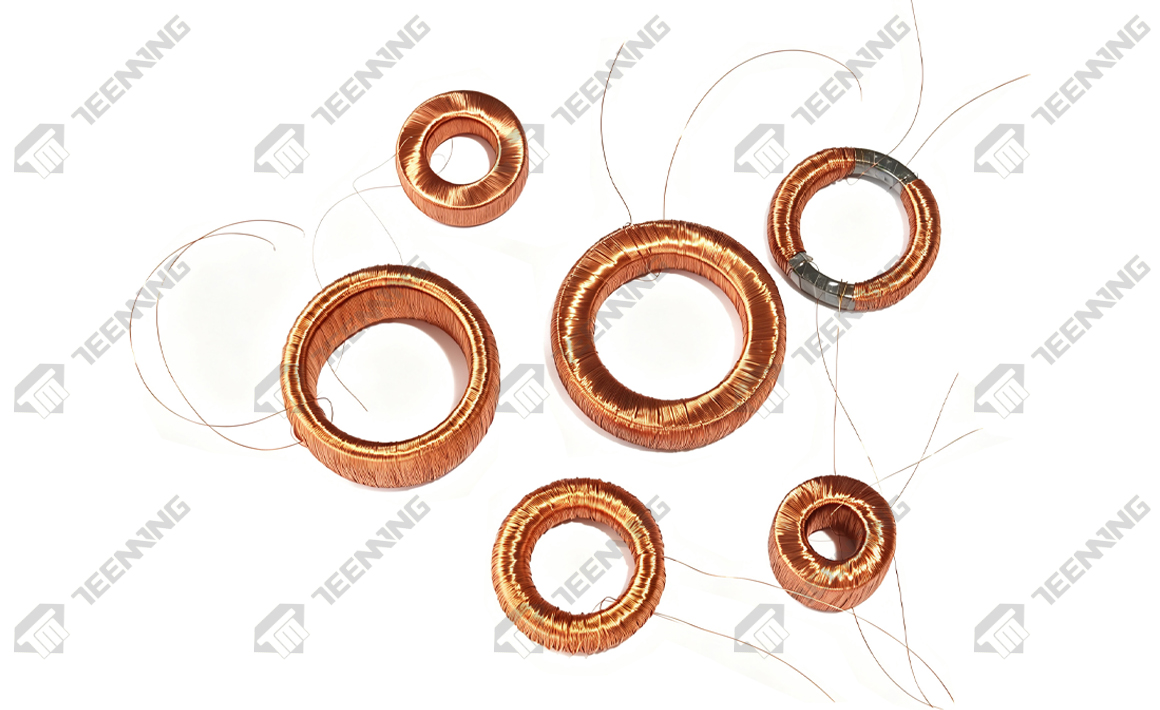

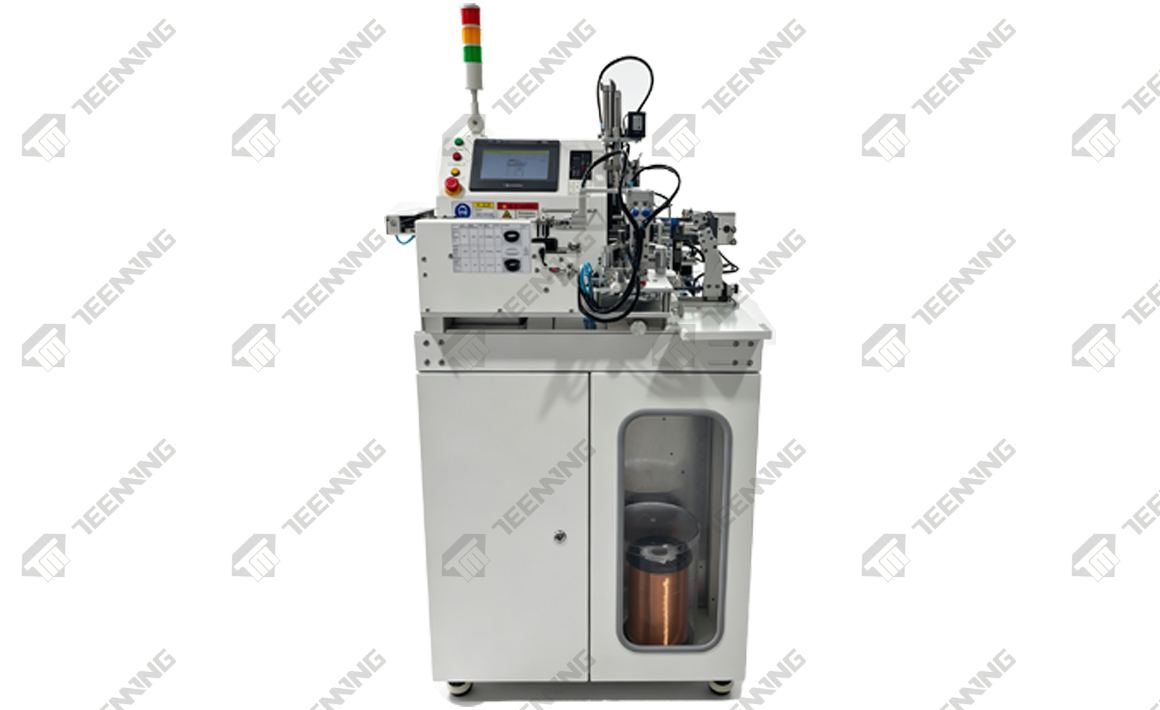

AUTO TOROIDAL WINDING MACHINE
1. Environmental protection, low noise, high efficiency
2. You can choose different wiring directions, winding angles, and segment angles
3. Photoelectric induction switch, high accuracy, accurate number of turns
4. All actions are fully automatic and do not require manual work
2. You can choose different wiring directions, winding angles, and segment angles
3. Photoelectric induction switch, high accuracy, accurate number of turns
4. All actions are fully automatic and do not require manual work
PROCESS
Vibration feeding
↓
Cylinder gripper loading
↓

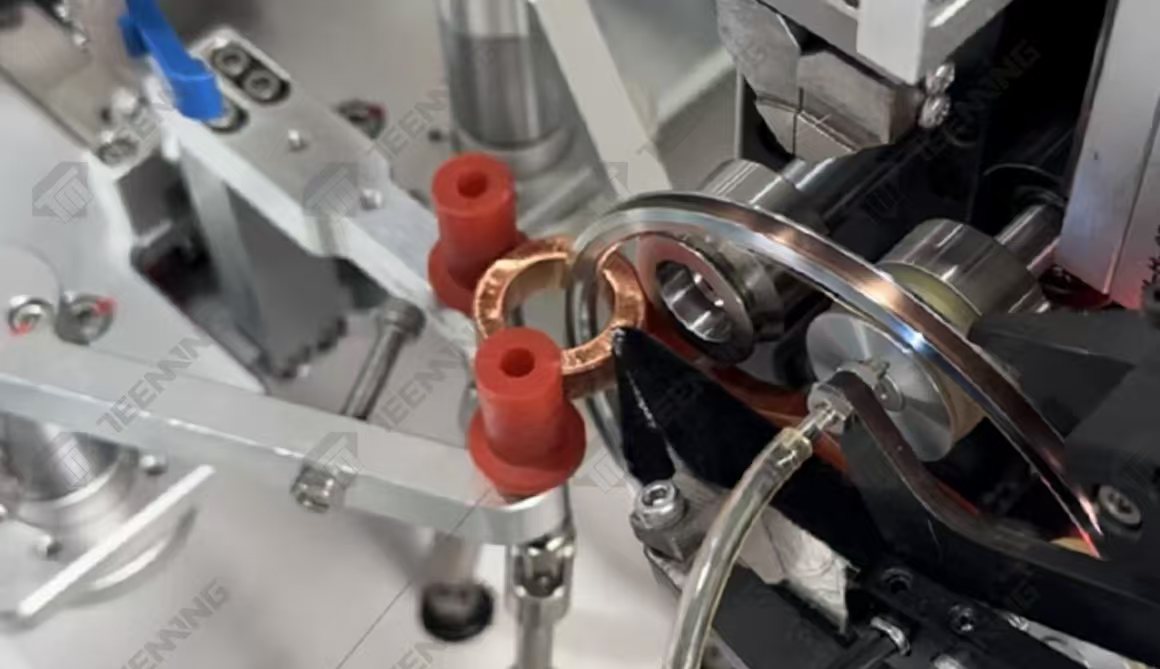

Winding
↓
Cylinder gripper unloading
↓
Cylinder gripper loading
↓
Winding
↓
Cylinder gripper unloading
SPECIFICATION
| Number of spindles | 1 |
| Control system | DC motor |
| Controller | PLC |
| Max.Outside diameter of winding | 45 mm |
| Min.Outside diameter of winding | 6 mm |
| Winding speed | 1600 RPM |
| Winding direction | CW/CCW |
| Wire range(AWG/mm) | 0.08~0.3mm |
| Power source | AC 220V 3 phase, 50/60 HZ |
| Consumed power | 1.5KW |
| Air pressure supply required | 5-6 KGS/c㎡(=0.5-0.6MPA) |
| Machine dimension (include screen) | 820(L)x830(W)x1300(H)mm |
| Machine weight | 116KGS |
| Option | 1.Servo tensioner 2.Electrical tensioner |
Due to machine improvement, machine specifications will be change without further notices.
