FEATURES
1. Insert pin to bobbin will not have chippings and burr
2. Automatic loading
3. Servo-Driven Automatic Pin Inserting
4. Automatic trace
5. Automatic unloading
6. CCD Inspection of Pin Dimensions
2. Automatic loading
3. Servo-Driven Automatic Pin Inserting
4. Automatic trace
5. Automatic unloading
6. CCD Inspection of Pin Dimensions
PROCESS
Automatic loading bobbin
↓
Check for a bobbin
↓
Left pin pre insertion
↓
Right pin pre insertion
↓
Left and right pin guide pins insert to the right position
↓
CCD Inspection of Pin Dimensions
↓
Reject NG Products
↓
Automatic unloading bobbin
↓
Check for a bobbin
↓
Left pin pre insertion
↓
Right pin pre insertion
↓
Left and right pin guide pins insert to the right position
↓
CCD Inspection of Pin Dimensions
↓
Reject NG Products
↓
Automatic unloading bobbin
SPECIFICATION

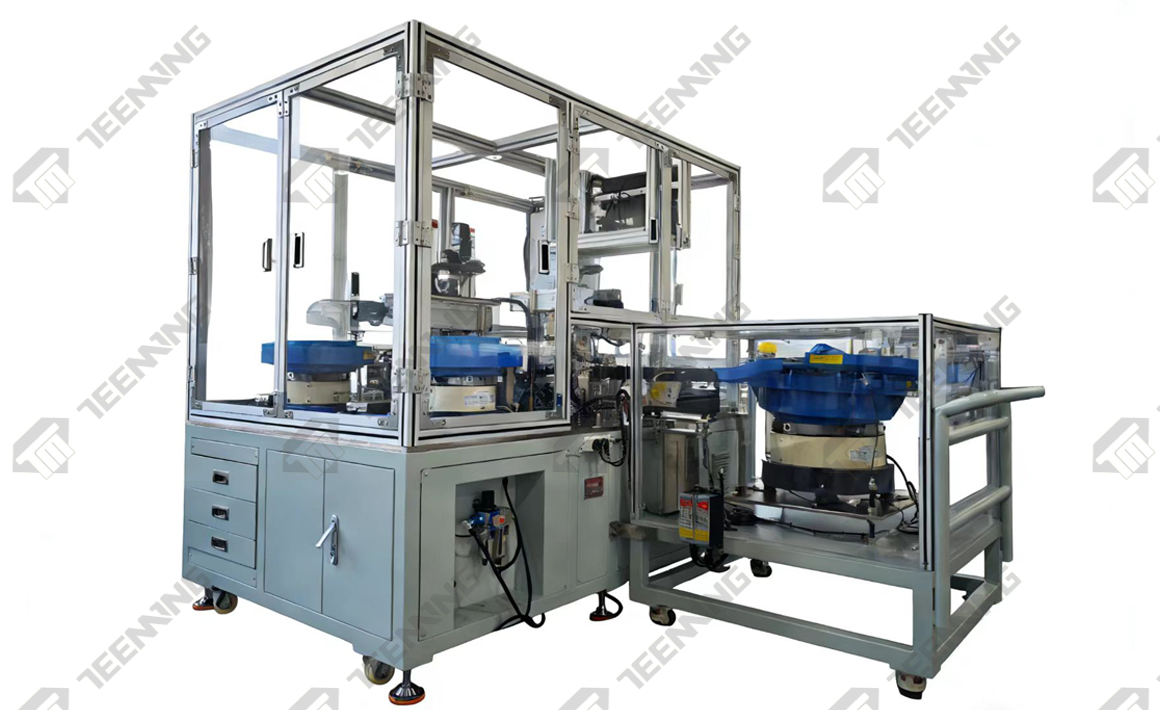

Machine Model : TM-HL08
| Power source | AC 220 50 HZ 1 Phase |
| Machine dimension | 1300(L) X 1900(W) X 1850(H) mm |
| Weight | 1600KGS |
| Air pressure | 6KG/ c㎡ |
| Cycle time | 3.5sec/ 1pcs |

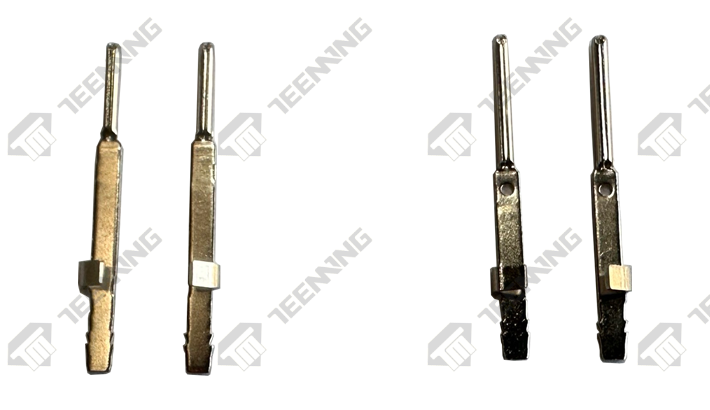

| Pin type | Scatter Pin |
| Total pins | 2 pins |
| Insertion ability | Straight |
| Option | 1.Bowl feeder 2.Safety cover 3.Safety Light Curtain |
