FEATURES

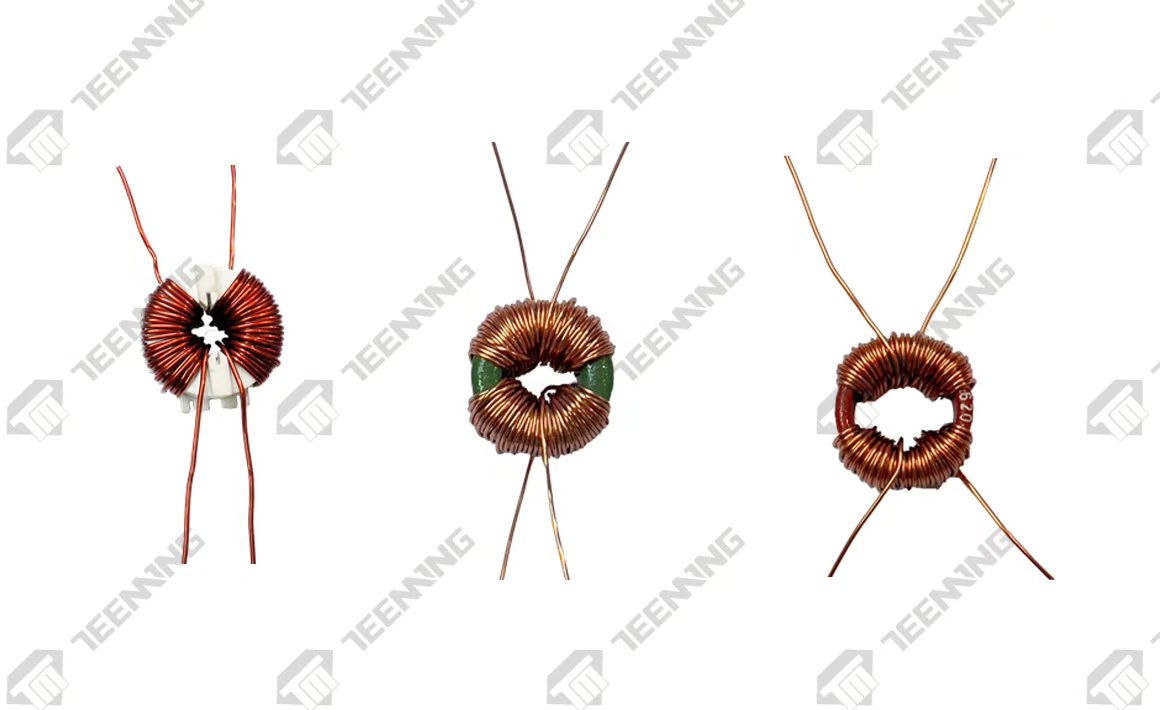

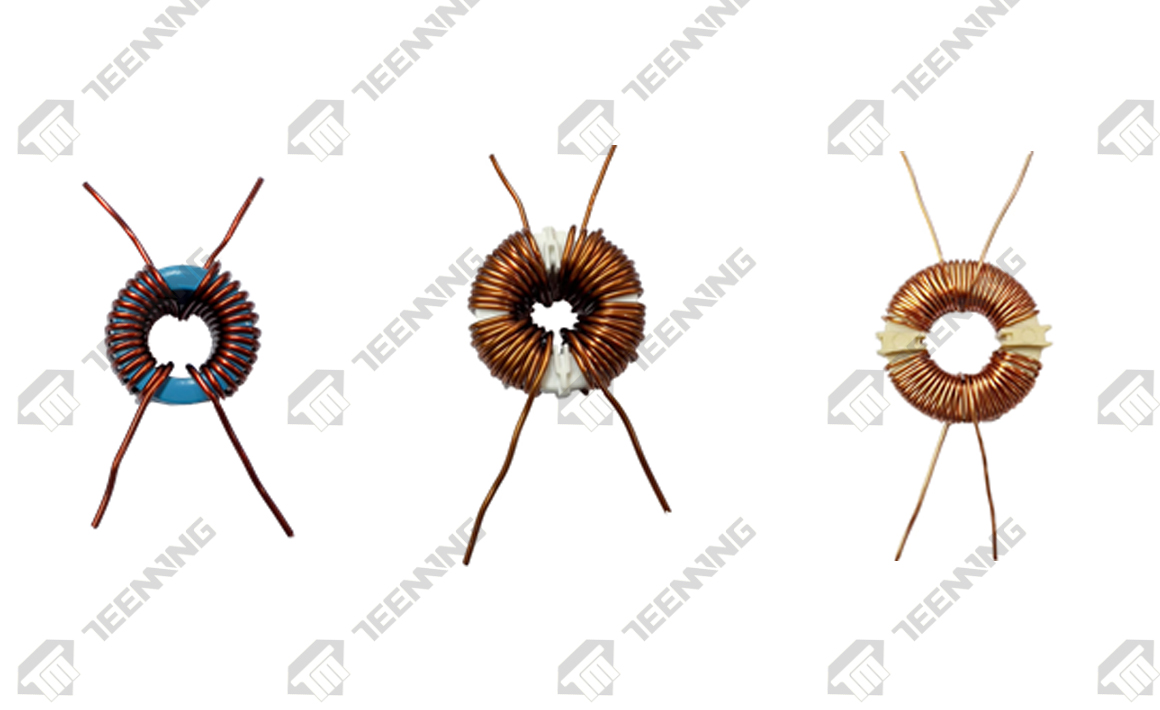

1. Supports butterfly winding, common-mode winding and notched PFC winding
2. High compatibility
3. Versatile functions
4. Efficient & stable
5. Easy to maintain
2. High compatibility
3. Versatile functions
4. Efficient & stable
5. Easy to maintain
PROCESS
Vibratory Bowl Feeding
↓
Cylinder gripper loading
↓
Automatic Winding
↓
Cylinder gripper unloading
↓
Cylinder gripper loading
↓
Automatic Winding
↓
Cylinder gripper unloading
SPECIFICATION

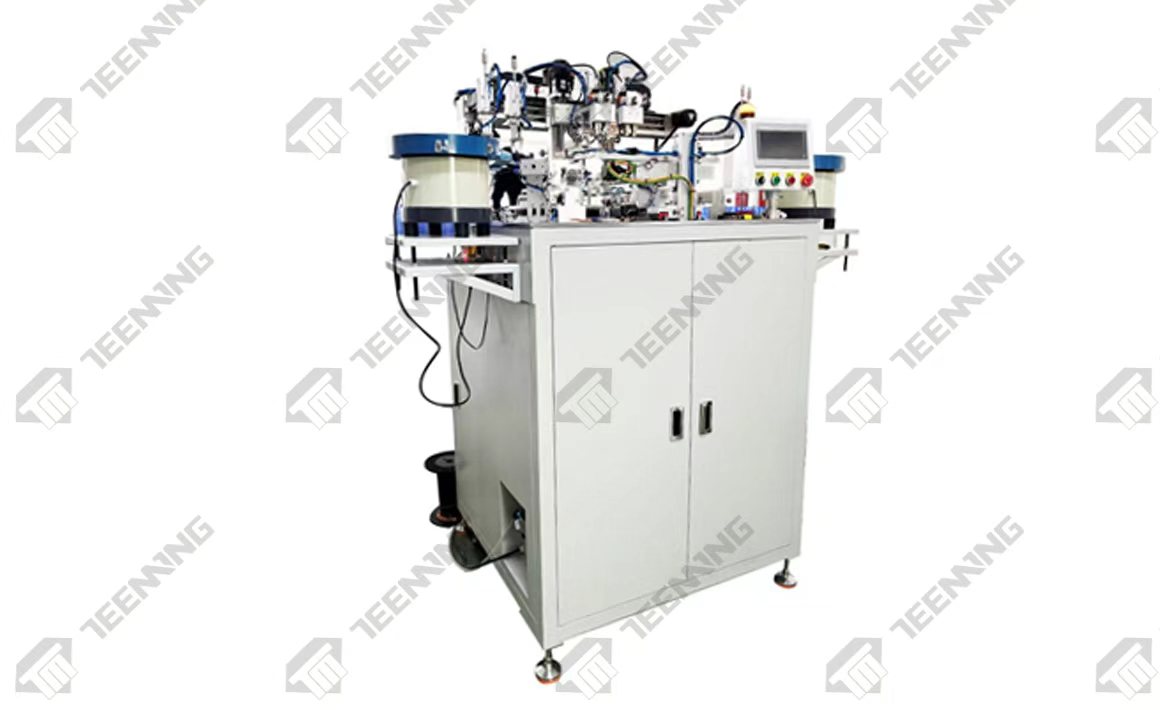

| Equipment model | TM-DX01 | TM-DX02 |
| Model distinctions | Single-station | Dual-station |
| Voltage | Single-phase AC 220 | Single-phase AC 220 |
| Power | 3.5KW | 4.5KW |
| Atmospheric pressure | 0.5~0.6MPa | 0.5~0.6MPa |
| Wire diameter | 0.45~1.0mm | 0.45~1.8mm |
| Length of the wire | <1800mm | <2200mm |
| Core OD | 12~40mm | |
| Core ID | the inner hole must be large enough to allow a crochet hook to pass through | |
| Production capacity | Related to the number of turns in the product's coil |
