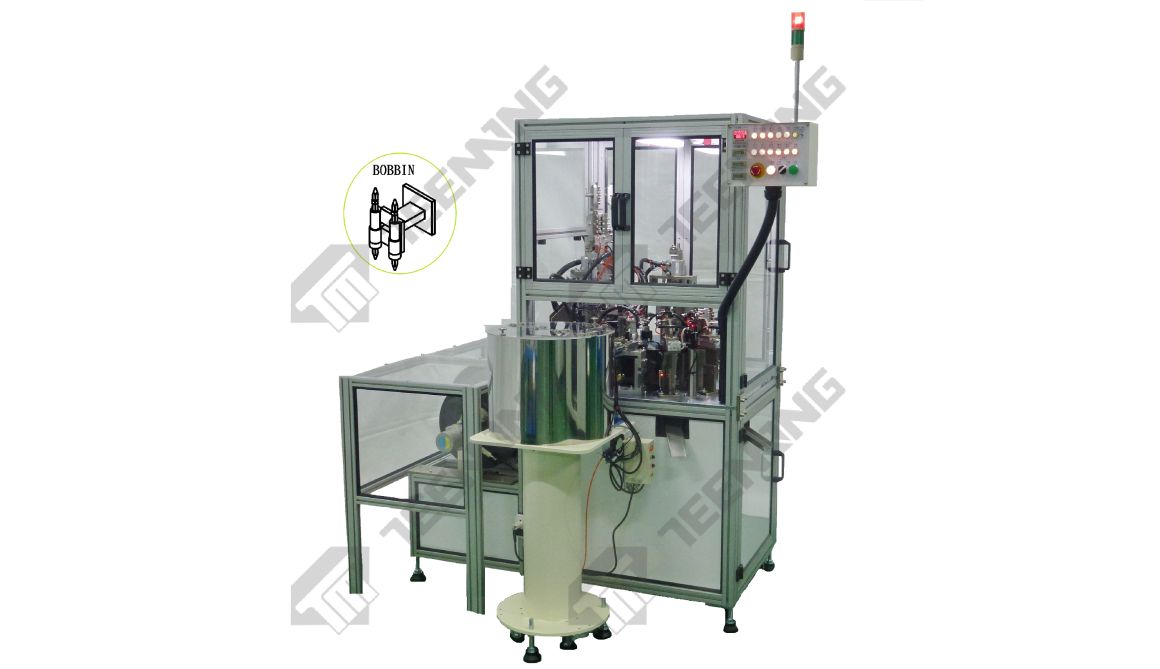

product
FEATURES

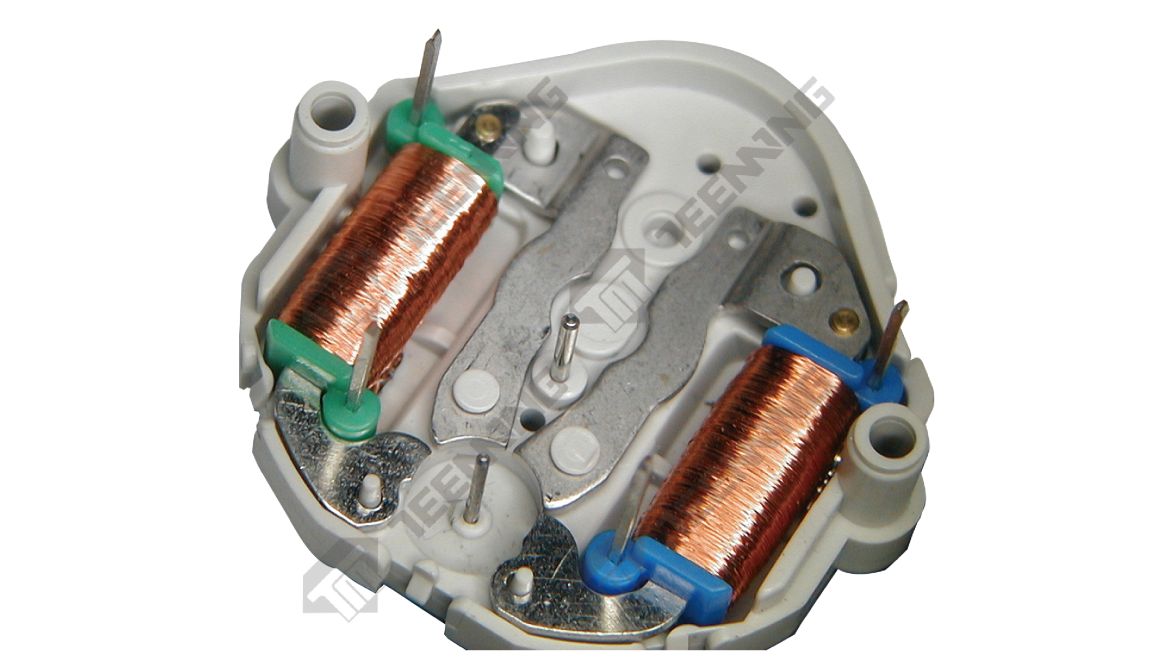

- Insert pin to bobbin will not have chippings and burr
- Cut pin will not have chipping
- Load by auto
- Automatic pin inserting
- Automatic trace
- Automatic unloading
PROCESS
Automatic loading
↓
Check if bobbin or not
↓
Form NO.1 pin end and insert
↓
Form NO.2 pin end and insert
↓
Trace
↓
Press pin into bobbin
↓
Bend pin
↓
Check if insert pin
↓
NG unloading
↓
OK unloading
↓
Check if bobbin or not
↓
Form NO.1 pin end and insert
↓
Form NO.2 pin end and insert
↓
Trace
↓
Press pin into bobbin
↓
Bend pin
↓
Check if insert pin
↓
NG unloading
↓
OK unloading
SPECIFICATION
| Power source | AC 220 50 HZ 1 Phase |
| Machine dimension | 660(L) X 660(W) X 1900(H) mm |
| Weight | 550KGS |
| Air pressure | 6KG/ c㎡ |
| Pin diameter | 0.4-0.5 mm |
| Pin length | 30 mm |
| Cycle time | 2.5sec/ 1pcs |
| Pin type | Round pins |
| Total pins | 2 pins |
| Insertion ability | Straight and L pin |
| Option | 1.Bowl feeder 2.Safety cover |
