product

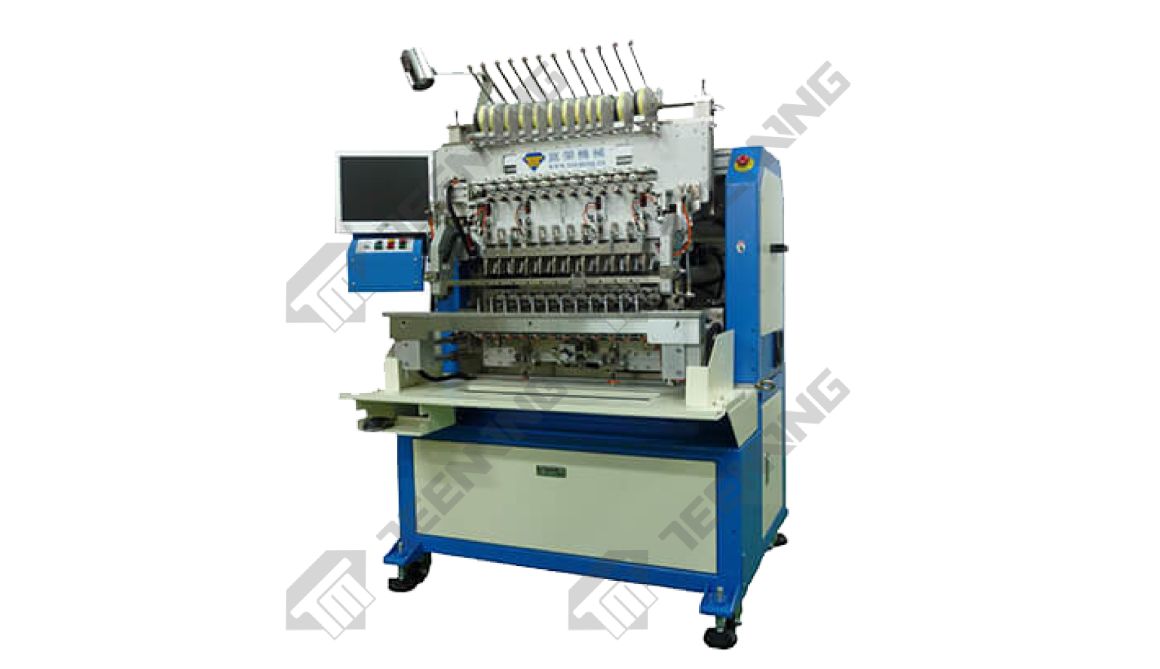

FEATURES
- Between 2 spindle pitch 50mm

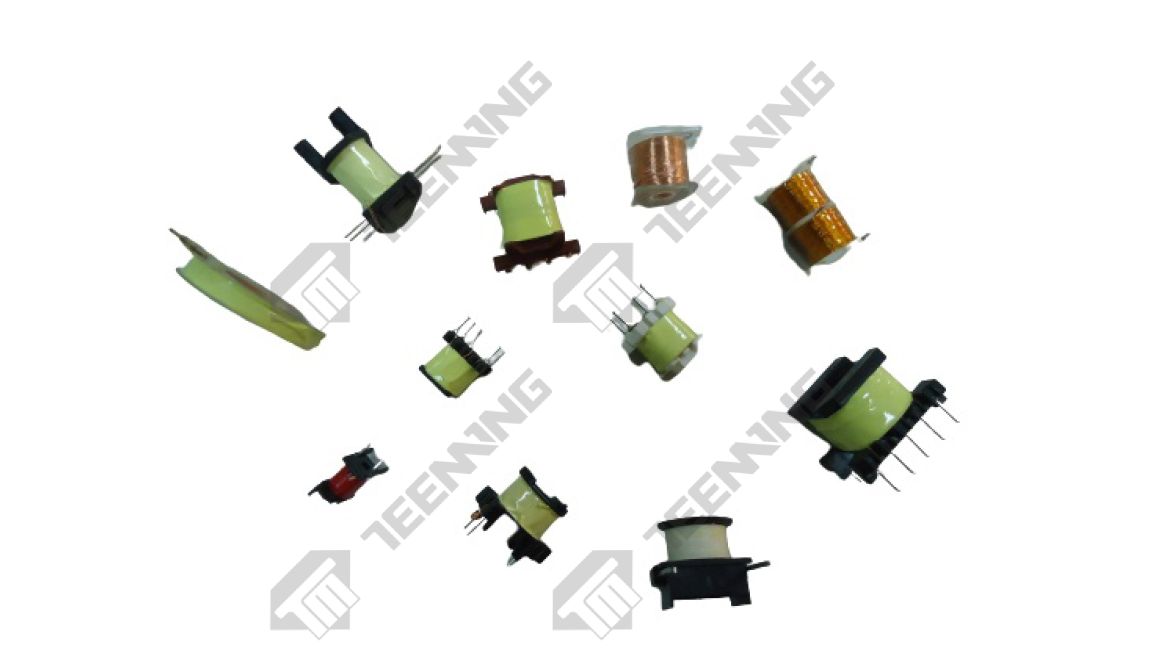

- Suitable for medium quantity and different type of small bobbin
- Customize jig and change it easy
- Machine can perform perfect layer winding.
- Equip with automatic loading and unloading to increase capacity
- Equip with taping
- Reduce man power and increase capacity
- Equip with automatic safety door
- Simple construction, easily control and convenient maintenance
PROCESS
Load bobbin to fixture by hand
↓
Winding(Wrap wire on the pin or leave some length of wire)
↓
Taping
↓
Unload by hand
↓
Winding(Wrap wire on the pin or leave some length of wire)
↓
Taping
↓
Unload by hand
SPECIFICATION
| Number of spindles | 8 |
| Control system | AC servo motor |
| Data storage | 1GB CF Card |
| Controller | Programmable automaion controller |
| Spindle pitch | 50 mm |
| Max. bobbin diagonal | 40 mm Bobbin width under 32mm |
| Max. width of winding | 85 mm |
| Winding speed | 12000 RPM |
| Winding direction | CW/CCW |
| Spindle stop accuracy | +/-0.225° |
| Wire range(AWG/mm) | AWG48~28/0.03~0.3mm |
| Maximum travel distance X | 90 mm |
| Maximum travel distance Y | 90 mm |
| Maximum travel distance Z | 50 mm |
| X/Y/Z axes increment (Step) | 0.02mm (mechanical),0.001 mm (program) |
| Wire wrapping angle | Radial /axial 0°/90° |
| Maximum wrapping speed | 200mm/sec |
| Power source | AC 220V 3 phase, 50/60 HZ |
| Consumed power | 3KW |
| Air pressure supply required | 5-6 KGS/c㎡(=0.5-0.6MPA) |
| Machine dimension (exclude screen) | 2350(L)x1200(W)x1700(H)mm |
| Machine weight | 750KGS |
| Option | 1.Wire twister(wire diameter under 0.05mm) 2.Automatic loading & unloading(bobbin width under 22mm) 3.Knife (wire diameter: over 0.15mm) 4.Electrical tensioner |
| Spindles of twist | 12 |
| Maximum twisting length | 300mm |
| Number of wire strands | 1.3.5.7.9 |
| Maximum twisting speed | 5000 RPM |
