FEATURES
- Between 2 spindle pitch 50mm

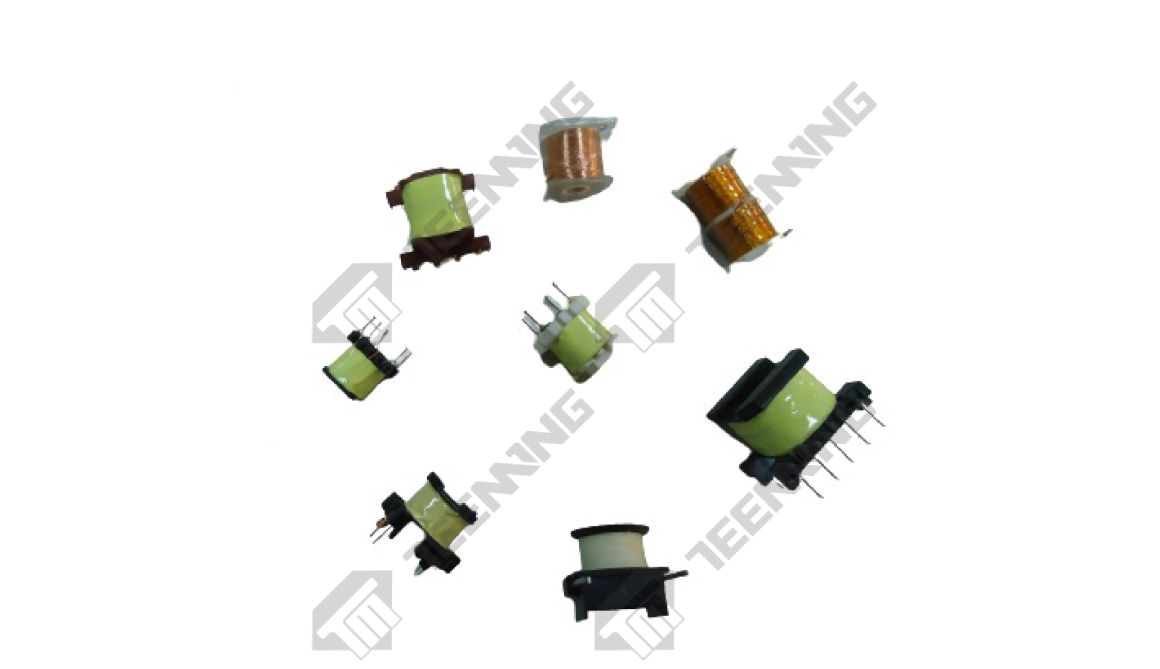

- Suitable for medium quantity and different type of small bobbin
- Customize jig and change it easy
- Machine can perform perfect layer winding.
- Equip with automatic loading and unloading to increase capacity
- Equip with taping
- Reduce man power and increase capacity
- Equip with automatic safety door
- Simple construction, easily control and convenient maintenance
PROCESS
Load bobbin to fixture by hand
↓
Winding(Wrap wire on the pin or leave some length of wire)
↓
Taping
↓
Unload by hand
↓
Winding(Wrap wire on the pin or leave some length of wire)
↓
Taping
↓
Unload by hand
SPECIFICATION

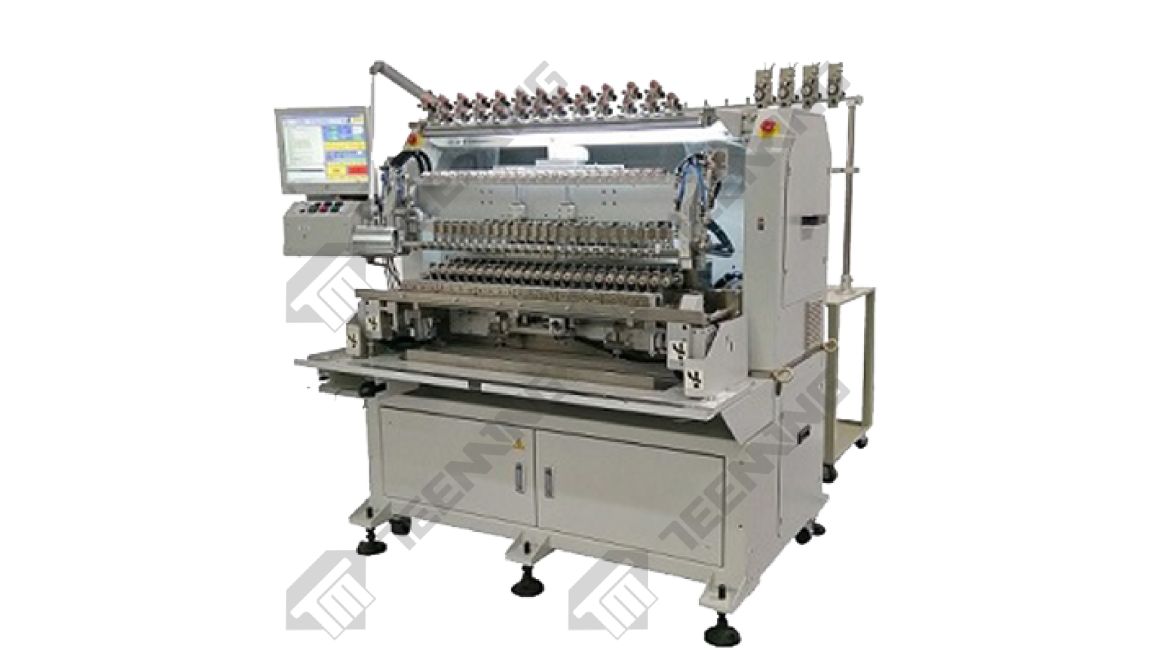

Number of spindles | 16 |
Control system | AC servo motor |
Data storage | 1GB CF Card |
Controller | Programmable automaion controller |
Spindle pitch | 50 mm |
Max. bobbin diagonal | 40 mm Bobbin width under 32mm |
Max. width of winding | 85 mm |
Winding speed | 18000 RPM |
Winding direction | CW/CCW |
Spindle stop accuracy | +/-0.225° |
Wire range(AWG/mm) | AWG48~28/0.03~0.5mm |
Maximum travel distance X | 90 mm |
Maximum travel distance Y | 65 mm |
Maximum travel distance Z | 50 mm |
X/Y/Z axes increment (Step) | 0.02mm (mechanical),0.001 mm (program) |
Wire wrapping angle | 0°/90° |
Maximum wrapping speed | 200mm/sec |
Power source | AC 220V 3 phase, 50/60 HZ |
Consumed power | 4KW |
Air pressure supply required | 5-6 KGS/c㎡(=0.5-0.6MPA) |
Tape O.D. | MAX.130mm |
Tape I.D. | 76mm |
Tape width | Min.2mm Max.25mm |
Machine dimension (exclude screen) | 1400(L)x1180(W)x1750(H)mm |
Machine weight | 350KGS |
