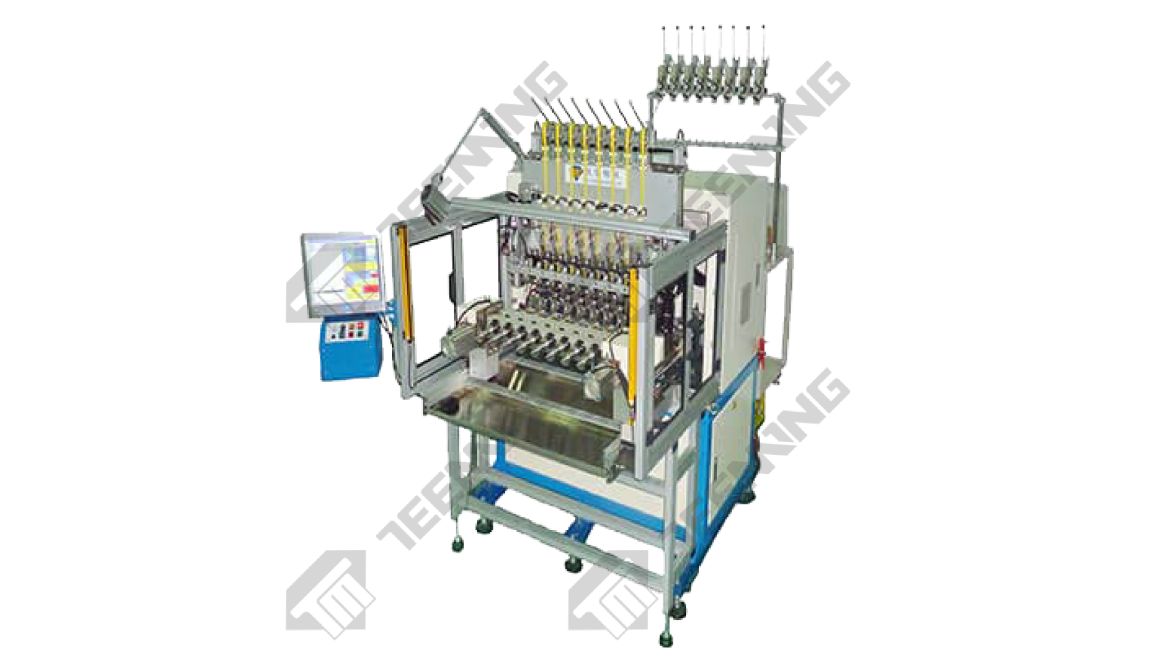

FEATURES
- Between 2 spindle pitch 80mm

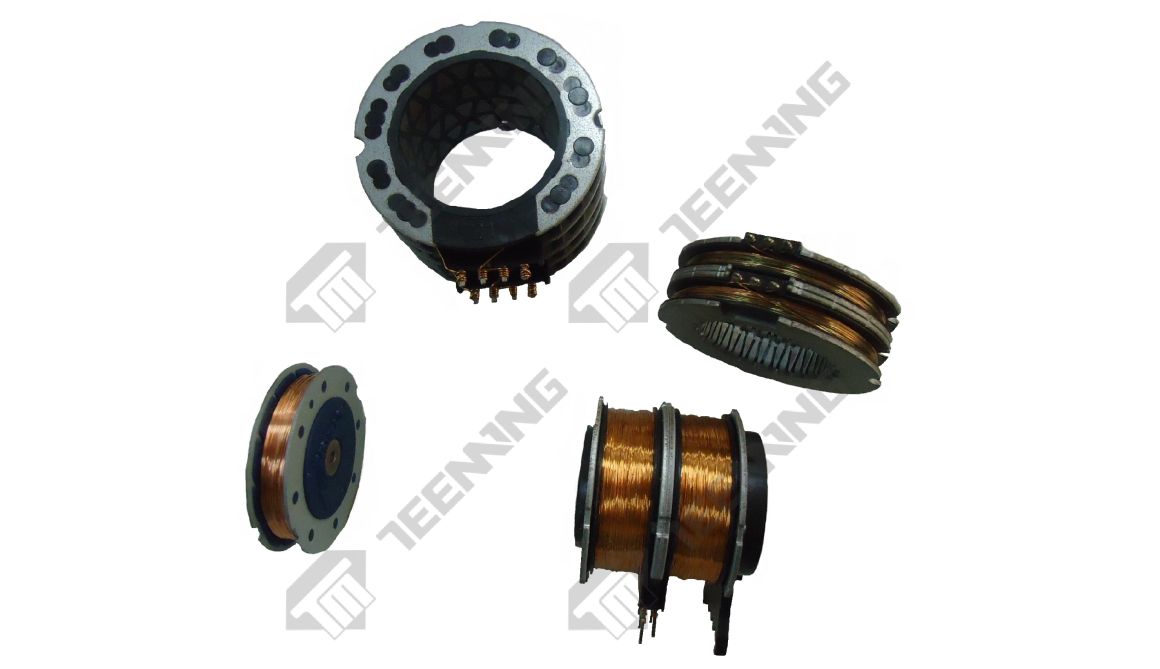

- Suitable for medium quantity and different type of small bobbin
- Customize jig and change it easy
- Machine can perform perfect layer winding.
- Equip with automatic loading and unloading to increase capacity
- Equip with taping
- Reduce man power and increase capacity
- Equip with automatic safety door
- Simple construction, easily control and convenient maintenance
PROCESS
Load bobbin to fixture by hand
↓
Winding(Wrap wire on the pin or leave some length of wire)
↓
Taping
↓
Unload by hand
↓
Winding(Wrap wire on the pin or leave some length of wire)
↓
Taping
↓
Unload by hand
SPECIFICATION
| Number of spindles | 8 |
| Control system | AC servo motor |
| Data storage | 1GB CF Card |
| Controller | Programmable automaion controller |
| Spindle pitch | 80 mm |
| Max. bobbin diagonal | 60 mm Bobbin width under 55mm |
| Max. width of winding | 95 mm |
| Winding speed | 9000 RPM |
| Winding direction | CW/CCW |
| Spindle stop accuracy | +/-0.225˚ |
| Wire range(AWG/mm) | AWG48~28/0.03~0.3mm |
| Maximum travel distance X | 100 mm |
| Maximum travel distance Y | 100 mm |
| Maximum travel distance Z | 80 mm |
| X/Y/Z axes increment (Step) | 0.02mm (mechanical),0.001 mm (program) |
| Wire wrapping angle | 0˚ /90˚ |
| Maximum wrapping speed | 200mm/sec |
| Power source | AC 220V 3 phase, 50/60 HZ |
| Consumed power | 4KW |
| Air pressure supply required | 5-6 KGS/c㎡(=0.5-0.6MPA) |
| Tape O.D. | Max.130mm |
| Tape I.D. | 76mm |
| Tape width | Min.2mm Max.25mm |
| Machine dimension (include screen) | 1750(L)x1250(W)x1550(H)mm |
| Machine dimension (include screen and tensioner case) | 1750(L)x2350(W)x1600(H)mm |
| Machine weight | 650KGS |
| Option | 1.Wire twister(wire diameter under 0.05mm) 2.Automatic loading & unloading(bobbin width under 22mm) 3.Cutter (Wire Diameter: Over 0.28mm) 4.Knife (wire diameter: over 0.15mm) 5.Electrical tensioner |
| Spindles of twist | 8 |
| Maximum twisting length | 300mm |
| Number of wire strands | 1.3.5.7.9 |
| Maximum twisting speed | 5000 RPM |
