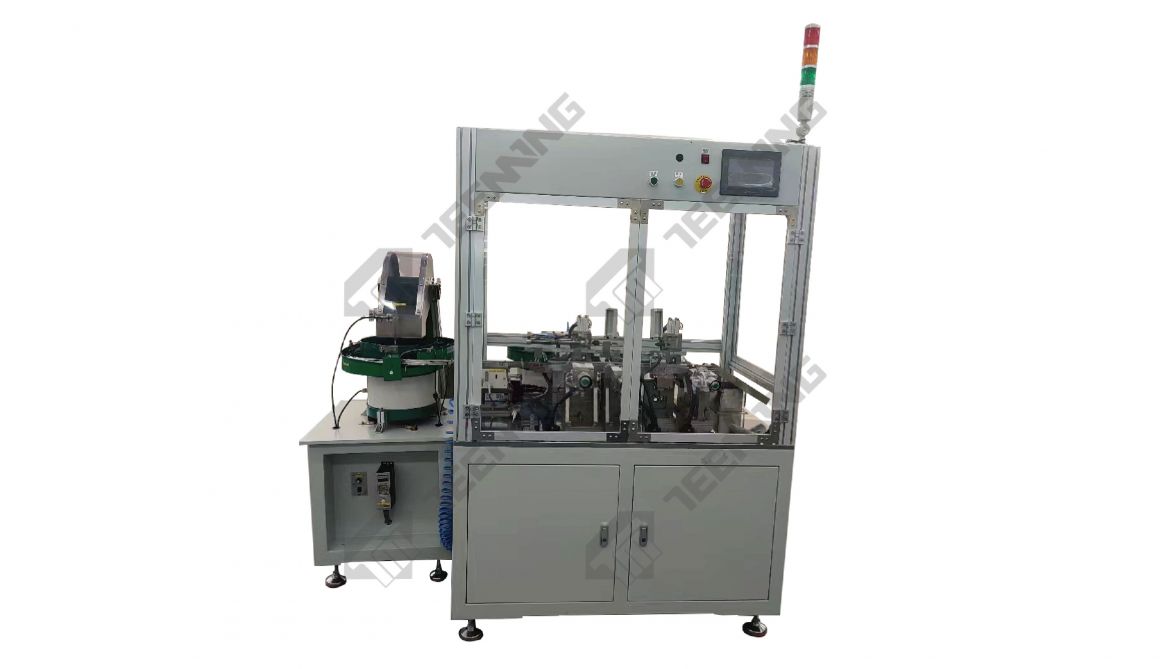

product
FEATURES
- Load coil by auto
- Automatic insert terminal
- Automatic unloading
PROCESS
Load wound coil to bobbin holder by hand
↓
Pre-insert terminal
↓
terminal into wound coil
↓
Check terminal
↓
Return finished coil to bobbin holder
↓
Pre-insert terminal
↓
terminal into wound coil
↓
Check terminal
↓
Return finished coil to bobbin holder
SPECIFICATION
| Loading way | Bowl feeder |
| Control | PLC |
| Load bobbin Q'TY | 1 pcs |
| Load Bobbin distance | 125mm |
| Max. bobbin diagonal | 100mm |
| Production capacity | 2.5 sec/1 pcs |
| Spindle way accuracy | +/-0.02mm |
| Power Source | 1φ AC220V,50/60HZ |
| Consumed power | 1000KW |
| Air pressure supply required | 0.6 MPA |
| Machine dimension | 1280(L)X1770(W)X1790(H) mm |
| Machine weight | 885 kgs |
