FEATURES
- Automatic packaging
- Reduce transport cycle time
- Reduce man power
PROCESS

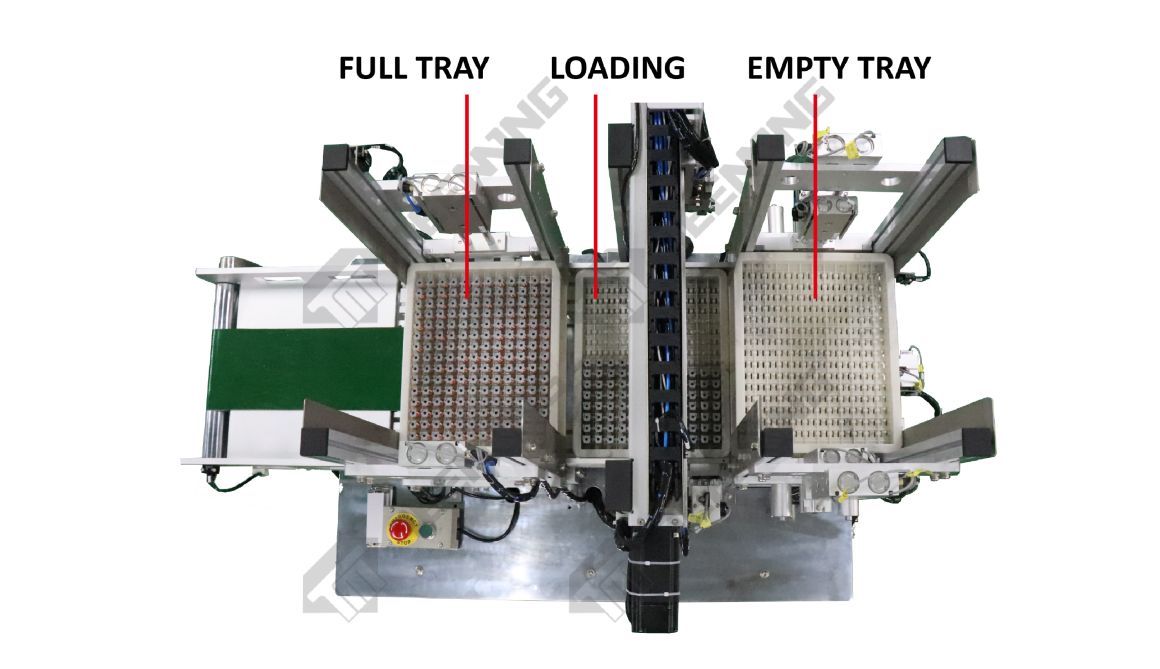

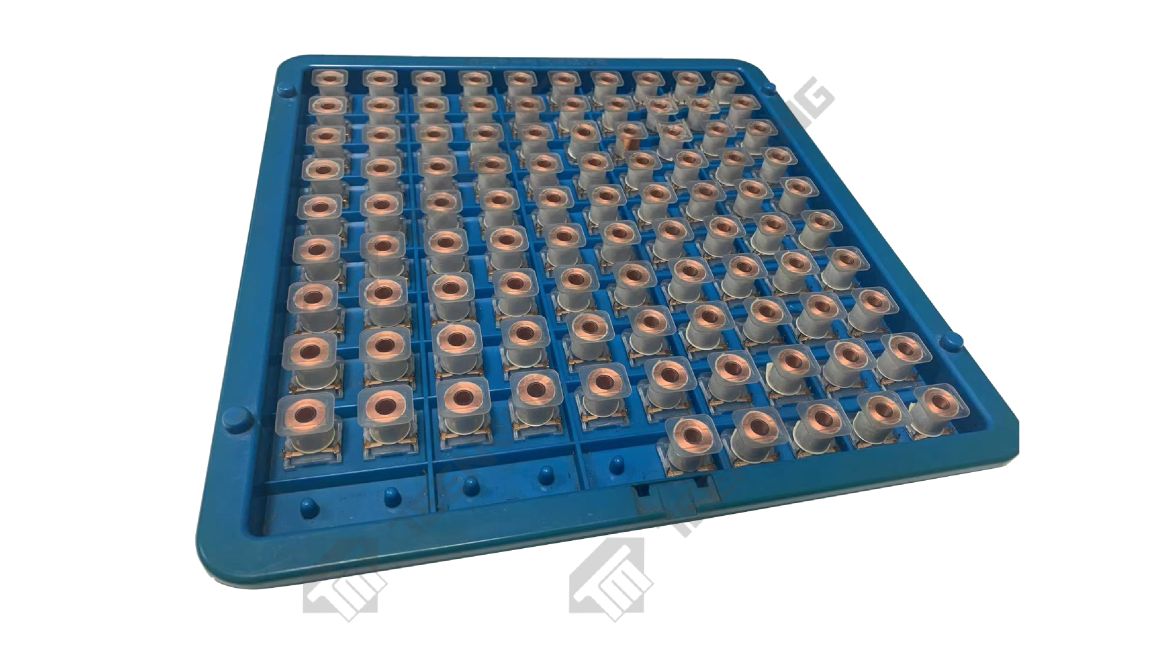

Pick good coil to empty tray
↓
If working tray full or 10 up full coil tray, will alarm
↓
If working tray full or 10 up full coil tray, will alarm
SPECIFICATION
| Scrap Handle | AC Servo Motor |
| Convey Way | AC Servo Motor |
| Q'TY | 4-12pcs |
| Empty tray load | Load by manual |
| Empty tray Change | Load by auto. |
| Full tray load | Storage by auto |
| Empty tray Q'TY | 10-15pcs |
| Full tray Q'TY | 10-15pcs |
| Desk Height | 1050+/-50MM-Adjustable |
| Capacity | 180 parts/hour |
| AC servo Max. speed | 1500PRM |
| Spindle way accuracy | +/-0.02mm |
| Power source | 220V 1phase |
| Consumed power | 1.5KW |
| Air pressure | 5~6 kgs /c㎡( =0.5~0.6MPA ) |
| Machine dimension | 1000(L) x 700(W) x 1800(H)mm |
| Machine weight | 350KGS |
