FEATURES
- Change tooling easily
- Pre-heating
- High effective
- Quality conformity
- Manual loading
- Automatic insertion
- Automatic swaging
- Automatic unloading
PROCESS
Bowl feeder
↓
Bobbin load to shooter
↓
Make trace on pin then insert into bobbin
↓
Cut pin
↓

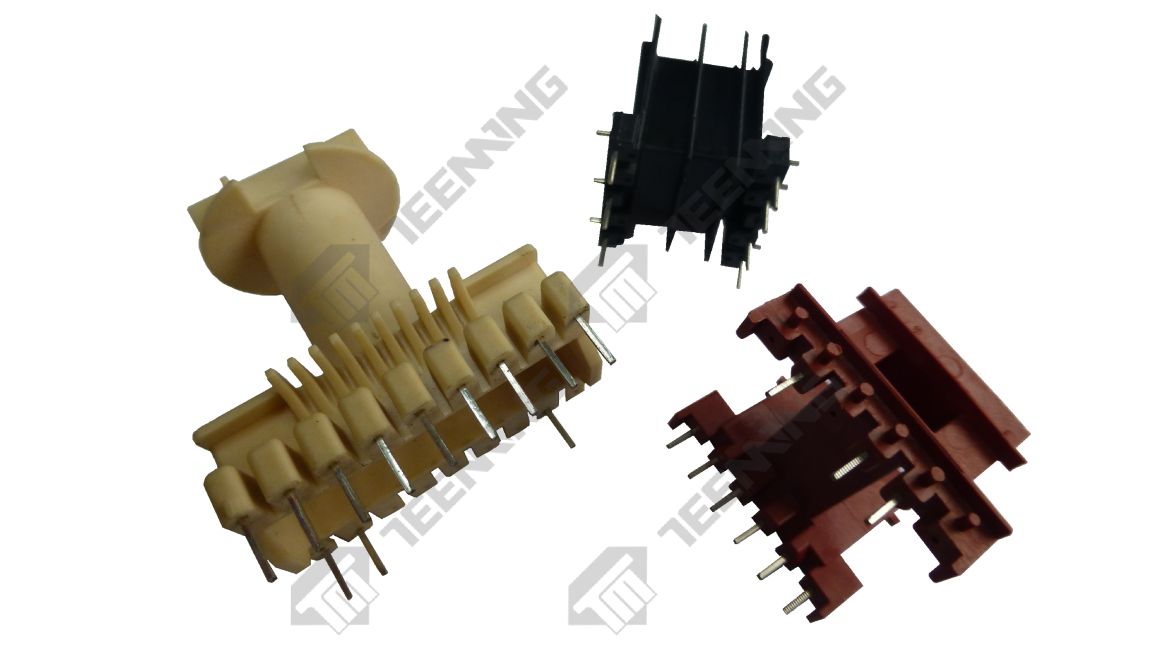

Unload inserted pin bobbin
↓
Bobbin load to shooter
↓
Make trace on pin then insert into bobbin
↓
Cut pin
↓
Unload inserted pin bobbin
SPECIFICATION
| Power source | AC 380 50 HZ 3 Phase |
| Machine dimension | 1700(L) X 1300(W) X 2100(H) mm |
| Weight | 397KGS |
| Air pressure | 6KG/ c㎡ |
| Pin diameter | 0.6-1.5 mm |
| Cycle time | 25-40 pcs/min |
| Pin type | Round square and flat pins |
| Total pins | 20 pins |
| Insertion ability | Straight and L pin |
| Option | 1.Bowl feeder 2.Heating from loading shoot |
Related Products

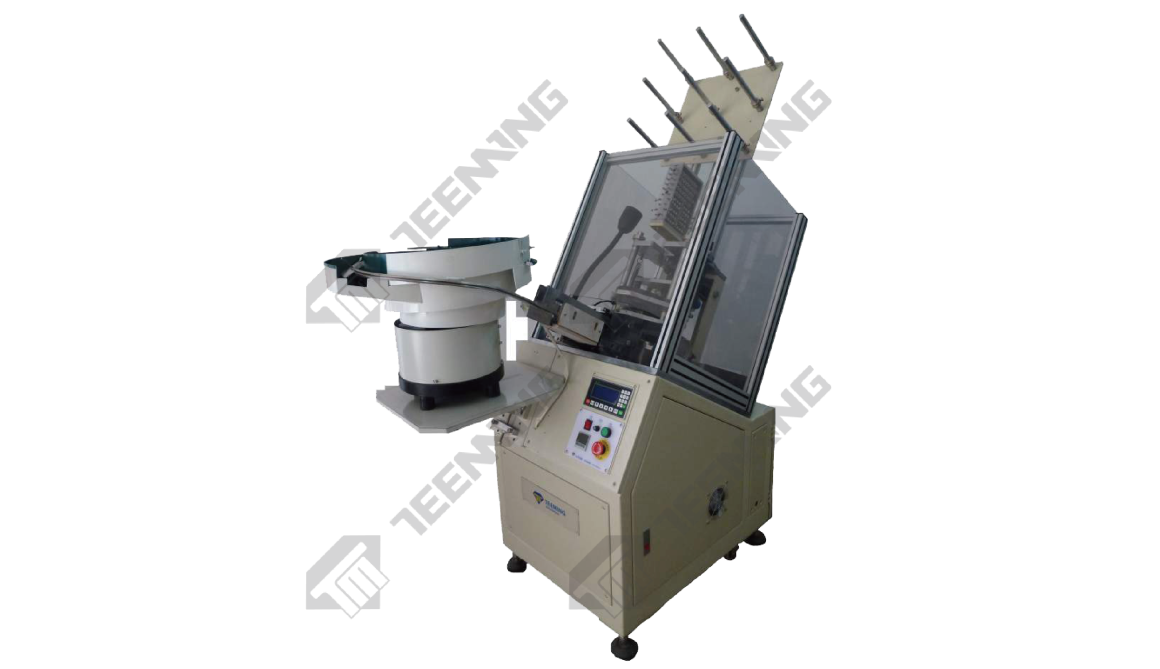

AIP-28 AUTO PIN INSERTING MACHINE
(1) The body is inclined to 30 degrees, easy to feed and withdraw materials, and the vibration barrel for feeding materials is optional.
(2) large versatility, only need to replace special components, can change the type in a short time.
(3) Round PIN, corner PIN, flat PIN, are applicable.
(4) Up to 20 pins can be inserted at the same time.
(5) PIN length, groove position, easy to adjust.
(6) When the wire is used up or broken, it can automatically detect the stop.
(7) Outside the linear PIN press, it can also be bent PIN 0~90 degrees.
(8) Can be used with the production line according to the user's requirements and design
