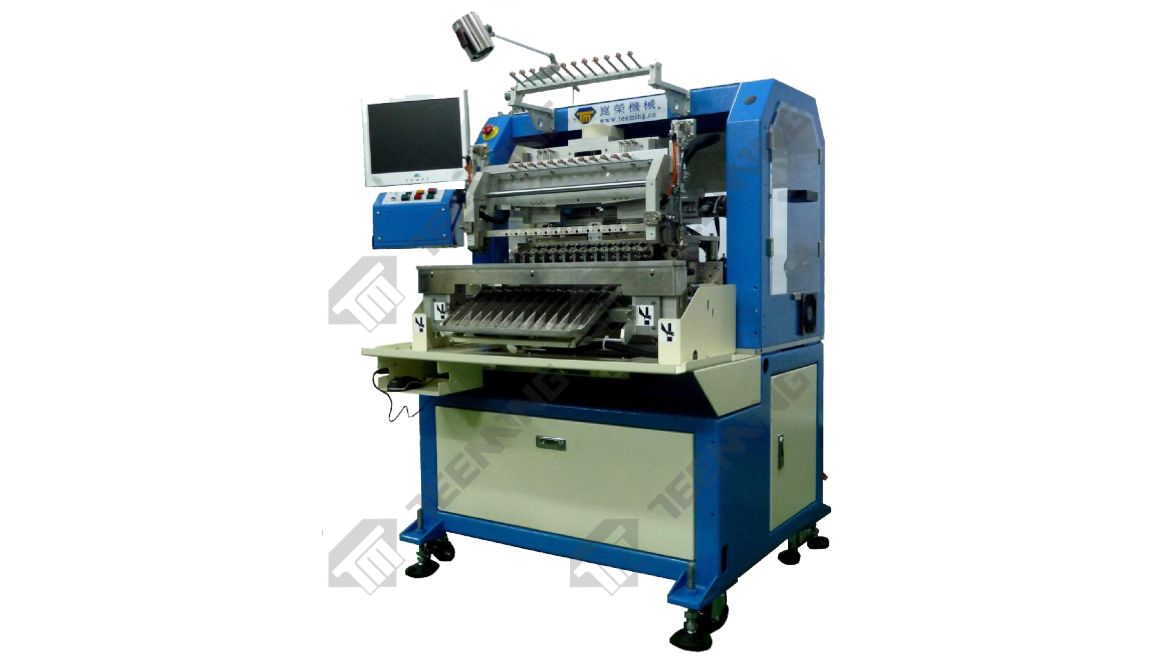

TM-3612_12 SPINDLE AUTO WINDING

A coil winding machine is a device used to create coils that are used in various electronic applications. These machines are typically used in the manufacturing of relay, solenoid, transformers, inductors, and other electrical components. Teeming's winding machine can add cutter, twister, servo tensioner suit for your product. The coil winding machine controller is PAC controller, it can control the winding lineand connect with auto line to reduce cost and increase production capacity.

Add to inquiry

FEATURES

Between 2 spindle pitch 36mm

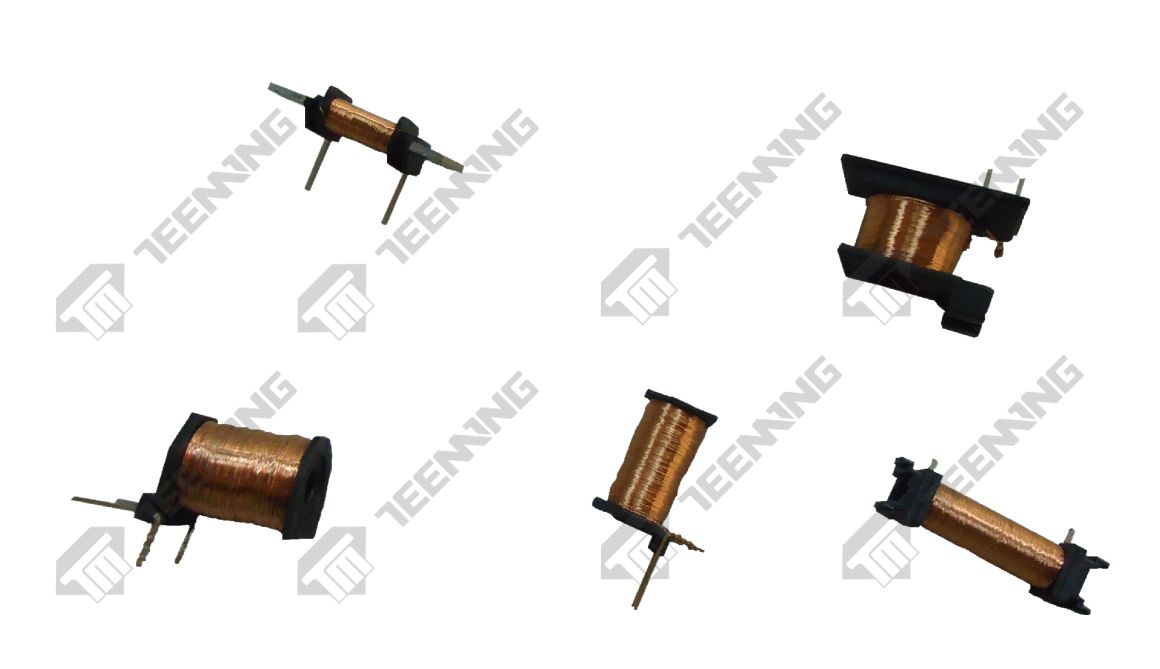

Suitable for small quantity and different type of small bobbin
Customize jig and change it easy
Machine can perform perfect layer winding.
Equip with automatic loading and unloading to increase capacity
Reduce manpower and increase capacity
Equip with automatic safety door
Simple construction, easily control, and convenient maintenance

PROCESS

Load bobbin to fixture by hand
↓
Winding(Wrap wire on the pin or leave some length of wire)
↓
Unload by hand

SPECIFICATION

Number of spindles	12
Control system	AC servo motor
Data storage	1GB CF Card
Controller	Programmable automaion controller
Spindle pitch	36 mm
Max. bobbin diagonal	26 mm Bobbin width under 18mm
Max. width of winding	85 mm
Winding speed	9000 RPM
Winding direction	CW/CCW
Spindle stop accuracy	+/-0.225°
Wire range(AWG/mm)	AWG48~28/0.03~0.3mm
Maximum travel distance X	90 mm
Maximum travel distance Y	90 mm
Maximum travel distance Z	50 mm
X/Y/Z axes increment (Step)	0.02mm (mechanical),0.001 mm (program)
Wire wrapping angle	0°
Maximum wrapping speed	250mm/sec
Power source	AC 220V 3 phase, 50/60 HZ
Consumed power	5KW
Air pressure supply required	5-6 KGS/c㎡(=0.5-0.6MPA)
Machine dimension (include screen)	1450(L)x1100(W)x1550(H)mm
Machine dimension (include screen and tensioner case)	1450(L)x2350(W)x1600(H)mm
Machine weight	560KGS
Option	1.Wire twister(wire diameter under 0.05mm) 2.Automatic loading & unloading 3.Cutter (wire diameter: over 0.40mm) 4.Knife (wire diameter: over 0.15mm) 5.Electrical tensioner
