TRANSFORMER WINDING MACHINES
A Transformer Winding Machine is a specialized device used in the manufacturing of transformers, which are essential components in various electronic and industrial applications. These machines ensure precise and efficient coil winding, enhancing the performance and reliability of transformers.
Teeming’s Transformer Winding Machine offers various customizable options, including a cutter, twister, tape applicator, and a servo tensioner, to meet different production requirements. The machine is equipped with a PAC controller, which enables precise winding control and seamless integration with automated production lines. This automation helps reduce costs, improve efficiency, and increase production capacity.
With advanced features and high precision, Teeming’s Transformer Winding Machine provides an ideal solution for manufacturers seeking high-quality, consistent winding performance in transformer production.
Learn more: What Is Winding Machines Used For？4 Available Features You Need to Know !
Teeming’s Transformer Winding Machine offers various customizable options, including a cutter, twister, tape applicator, and a servo tensioner, to meet different production requirements. The machine is equipped with a PAC controller, which enables precise winding control and seamless integration with automated production lines. This automation helps reduce costs, improve efficiency, and increase production capacity.
With advanced features and high precision, Teeming’s Transformer Winding Machine provides an ideal solution for manufacturers seeking high-quality, consistent winding performance in transformer production.
Learn more: What Is Winding Machines Used For？4 Available Features You Need to Know !
Related Products

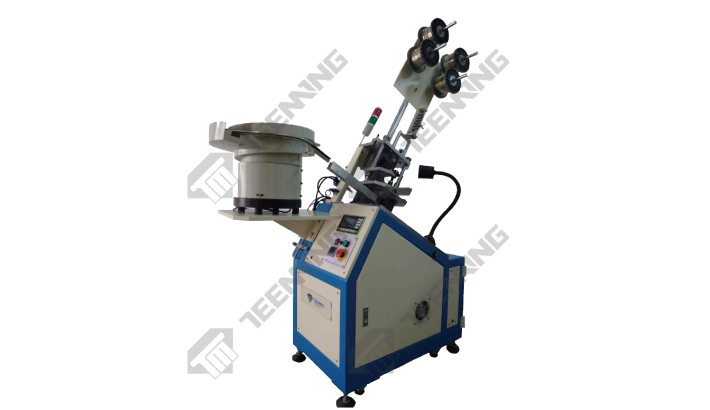

AIP-28 AUTO PIN INSERTING MACHINE
(1) The body is inclined to 30 degrees, easy to feed and withdraw materials, and the vibration barrel for feeding materials is optional.
(2) large versatility, only need to replace special components, can change the type in a short time.
(3) Round PIN, corner PIN, flat PIN, are applicable.
(4) Up to 20 pins can be inserted at the same time.
(5) PIN length, groove position, easy to adjust.
(6) When the wire is used up or broken, it can automatically detect the stop.
(7) Outside the linear PIN press, it can also be bent PIN 0~90 degrees.
(8) Can be used with the production line according to the user's requirements and design

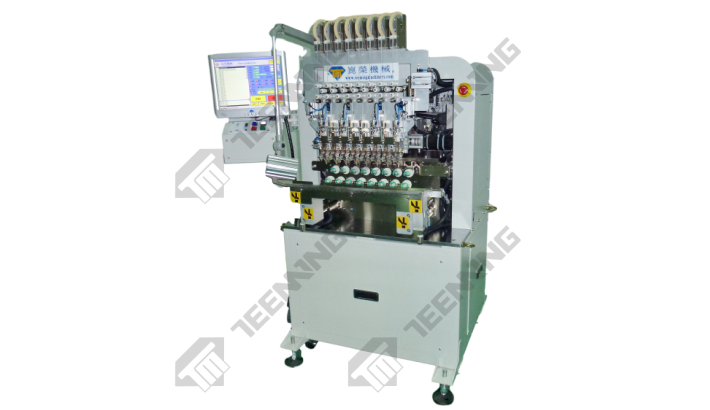

TM-5008_8 SPINDLE AUTO WINDING
Between 2 spindle pitch 50mm

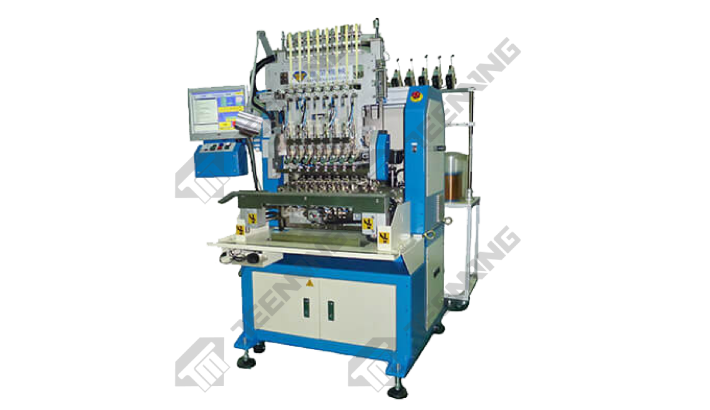

8 SPINDLE AUTO WINDING+TAPING
Between 2 spindle pitch 50mm

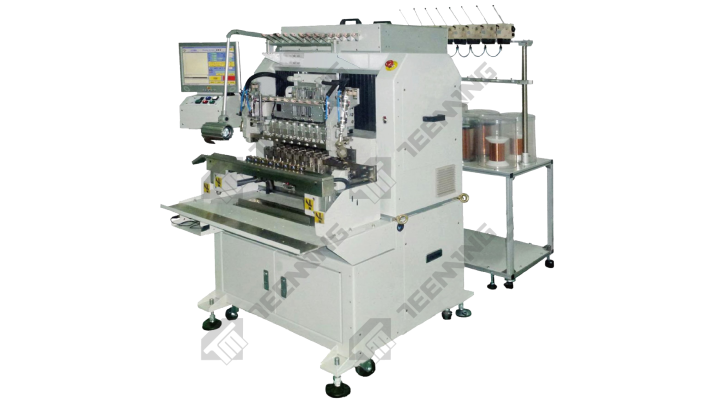

TM-5008-08-TP_8 SPINDLE AUTO TAPING
Between 2 spindle pitch 50mm
ETS-2MT CNC IN-LINE SOLDERING
Angled Soldering Machine
Process - Winding Machine For Transformer
1. Load the bobbin onto the spindle of the winding machine for transformer. Secure the bobbin in place to prevent any movement during the winding process. The bobbin serves as the foundation for the wire coils.
2.Start the winding machine to initiate the winding process. The machine will rotate the bobbin and guide the wire onto it according to the specified parameters.
3.End winding, once the desired number of turns or layers is reached, secure the ending end of the wire to the bobbin.
4.Carefully remove the fully wound bobbin from the spindle. Take care to avoid any damage to the wound coils during the unloading process.
Q1. How can I make a winding machine for a transformer?
A1. We can design a winding machine for your transformer based on your bobbin and winding specifications.Learn More：What Is Winding Machines Used For？4 Available Features You Need to Know !
Q2. What is a transformer Winder?
A2. A transformer winder is a type of winding machine that can wind multiple spindles for transformers. It can increase capacity, reduce manpower, and improve quality.View more related types：
