A soldering machine is a specialized device used in electronics manufacturing and various other industries for the process of soldering.

The soldering machine is equipped with a heating element, the heating element rapidly heats the soldering tip to the desired temperature for melting the solder.

Soldering machines come with precise temperature control to ensure that the soldering tip reaches and maintains the optimal temperature for the specific soldering task. Different soldering applications require different temperatures to achieve the best results.

Soldering machines often have a digital display to show the set and actual temperatures, as well as control to adjust the temperature and other settings.
  1. Suitable for small quantity and different type of coil.
  2. Customize jig and change it easy.
  3. Can set soldering time
  4. Automatic dip solder (Option)
  5. Can set volume of dip flux (Option)
  6. Automatic detect height of dip solder (Option)
  7. Function of moving (Option)
  8. Dip cup up and down by servo motor (Option)
Put coil to the fixture and flux by hand
Automatic dip solder
Automatic angle turn
Unload by hand

Learn more: What Is a Soldering Machine Used For?A Full Guide To Know How Does It Work!
Soldering way Jig up/down
Power source AC220V 2000W
Machine dimension 500(L)x850(W)x660(H)mm
Weight  75KGS
Air pressure 5kgs/c㎡
Inner pot size 2950(L)x1050(W)x650(H)mm
Cycle time 10-20 pcs / 10-12sec
Pot Material Titanium
Temperature 600℃ Max.

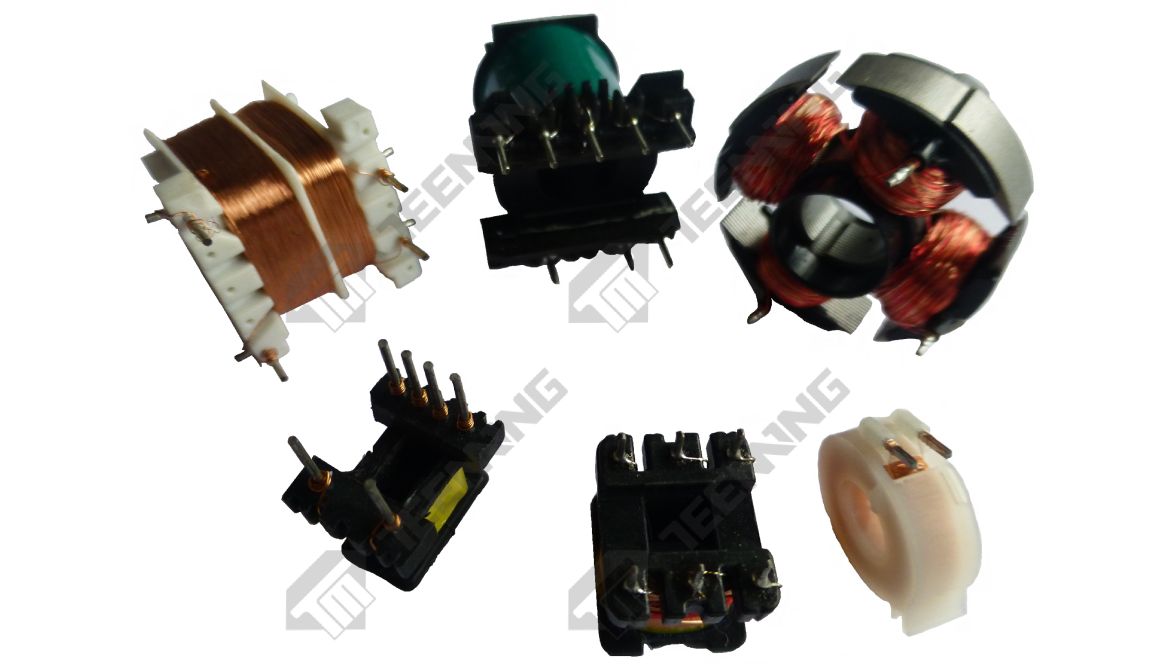

Suitable coil any coil
Dip cup up/down distance 76mm (controlled by cylinder)
Due to machine improvement, machine specifications will be change without further notices.
