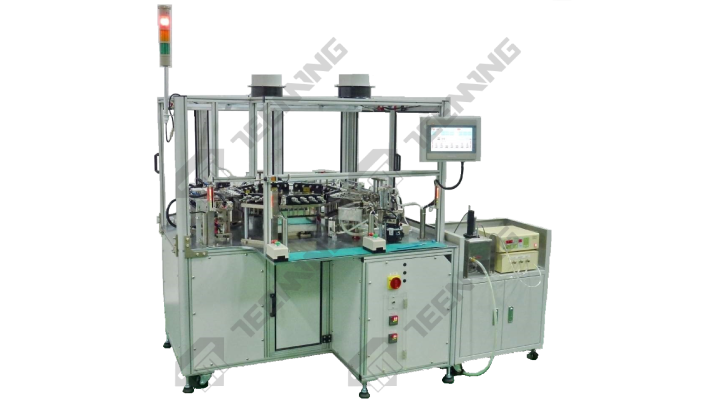

SOLDERING MACHINE

According your product specifiction, the soldering machine can add flux, DCR test, surge test, CCD test and then OK unlaod to next process
Learn more: What Is a Soldering Machine Used For？A Full Guide To Know How Does It Work！

ETS-2E CNC IN-LINE SOLDERING

ETS-2MT CNC IN-LINE SOLDERING

Angled Soldering Machine

ETS-2MTFMS CNC IN-LINE SOLDERING

Angled Soldering Machine

4 STATION SOLDERING

6 STATION SOLDERING

8 STATION SOLDERING

10 STATION SOLDERING

Process - Soldering Machine

1. Load the coil onto the spindle of the soldering machine. Secure the coil in place to prevent any movement during the soldeing process. The tooling serves as the foundation for the soldering coils.

2.Start the soldeing machine to initiate the soldeing process. The soldering machine will rotate the tooling and guide the coil onto it according to the specified parameters.

3.Check coil after soldering. Ensure its resistance is okay or not.

4.Carefully remove the fully coil from the spindle. Take care to avoid any damage to the coils during the unloading process.

Q1. How to choose a suitable soldering machine model?

A1. You can share coil drawing, optional and cycle time you want, we will offer best solution to you.

Q2. What are the differences between each soldering machine?

A2. It will according what optional you want, and soldering function will different.

Q3. How often should the soldering machine be maintained?

A3. It is recommended to have a small maintenance for three months and a major maintenance for half a year.
