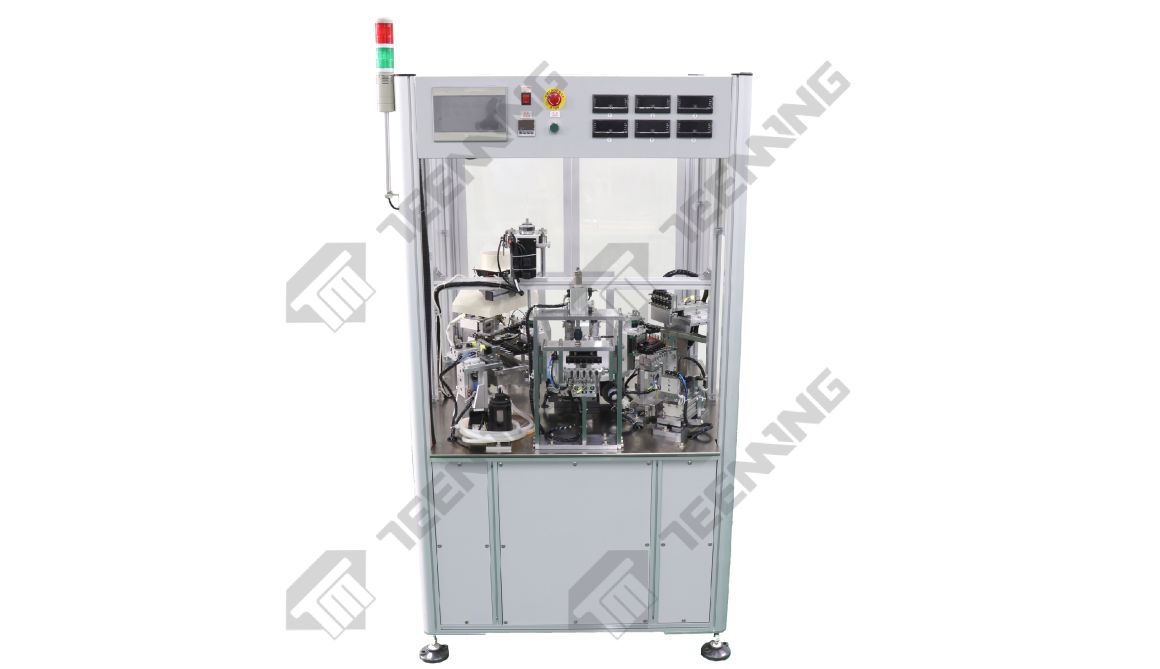

6 STATION SOLDERING
A soldering machine is a specialized device used in electronics manufacturing and various other industries for the process of soldering.
The soldering machine is equipped with a heating element, the heating element rapidly heats the soldering tip to the desired temperature for melting the solder.
Soldering machines come with precise temperature control to ensure that the soldering tip reaches and maintains the optimal temperature for the specific soldering task. Different soldering applications require different temperatures to achieve the best results.
Soldering machines often have a digital display to show the set and actual temperatures, as well as control to adjust the temperature and other settings.
The soldering machine is equipped with a heating element, the heating element rapidly heats the soldering tip to the desired temperature for melting the solder.
Soldering machines come with precise temperature control to ensure that the soldering tip reaches and maintains the optimal temperature for the specific soldering task. Different soldering applications require different temperatures to achieve the best results.
Soldering machines often have a digital display to show the set and actual temperatures, as well as control to adjust the temperature and other settings.
FEATURES
- Automatic 6 station
- Multi-station design
- Suitable for small quantity and different type of coil
- Customize jig and change it easy
- Automatic dip solder
- Can set volume of dip flux
- Automatic detect height of dip solder
- Function of displacement
- Dip cup up and down by servo motor
- Can set soldering time
- Promote effectiveness and increase capacity
PROCESS
Put coil to the fixture
↓
Fluxing
↓
Soldering
↓
Press
↓
DCR test & NG
↓
OK unload to conveyer
Learn more: What Is a Soldering Machine Used For?A Full Guide To Know How Does It Work!
↓
Fluxing
↓
Soldering
↓
Press
↓
DCR test & NG
↓
OK unload to conveyer
Learn more: What Is a Soldering Machine Used For?A Full Guide To Know How Does It Work!
SPECIFICATION
Power source | AC220V 1300W |
Machine dimension | 1200(L)x1200(W)x1400(H)mm |
Weight | 300KGS |
Air pressure | 5kgs/c㎡ |
Inner pot size | 155(L)x110(W)x65(H)mm |
Cycle time | 2 sec/pcs |
Pot Material | Titanium |
Temperature | 600℃ Max. |
Suitable products | Transformer, relay, fan motor |
Option | 1.Solder cup up/down controlled by stepping or servo motor 2.Ohm Test 3.Wave solder 4.Flux density control 5.Tin feeder 6.Unload coil to belt |
